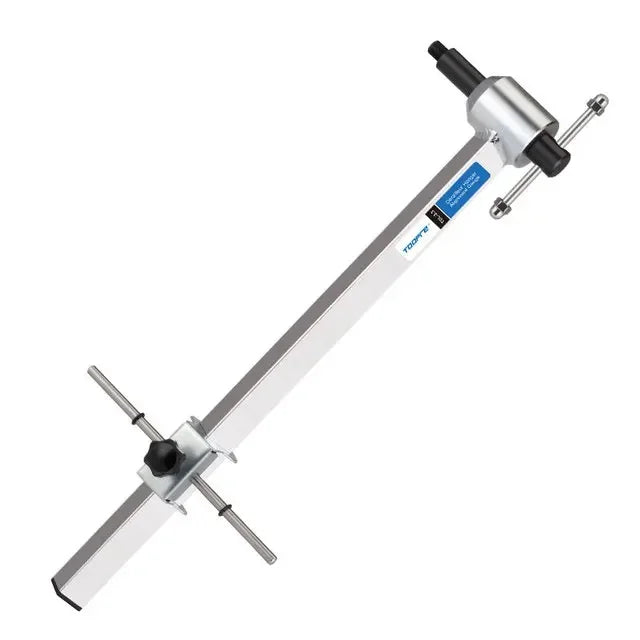

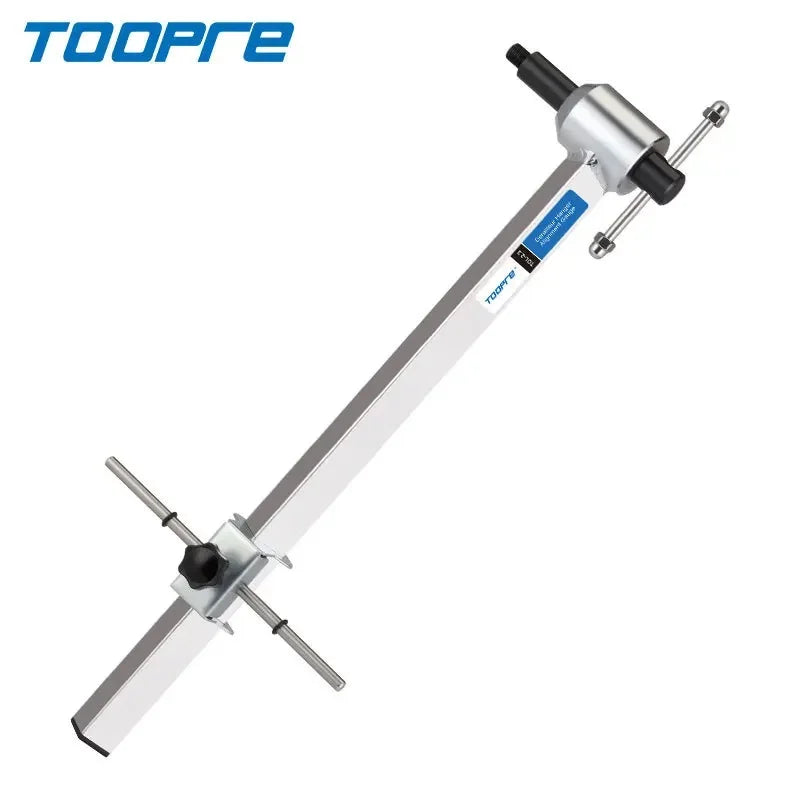

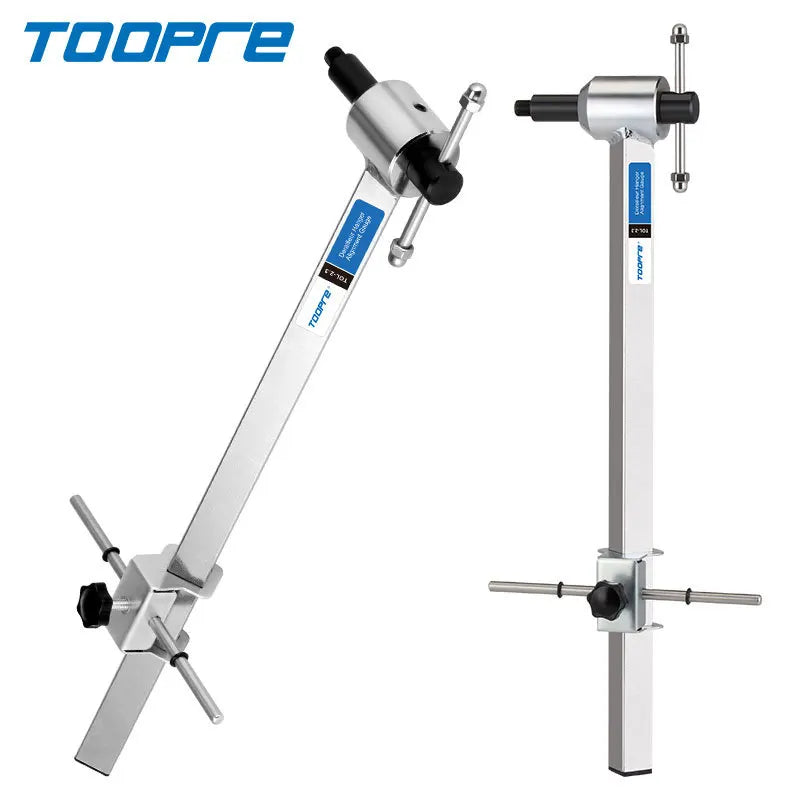

TOOPRE Bicycle Derailleur Hanger Alignment Gauge Professional Tool Measure Straighten Dropout Repair DAG-2.2 MTB Road Bike Tools

The TOOPRE bicycle derailleur hanger alignment gauge is designed for measuring and straightening a misaligned rear derailleur hanger, helping address shifting issues caused by hanger deviation.

Derailleur hanger tool specifications

Brand Name: TOOPRE
Choice: yes
High-concerned chemical: None
Origin: Mainland China
Type: Derailleur tool

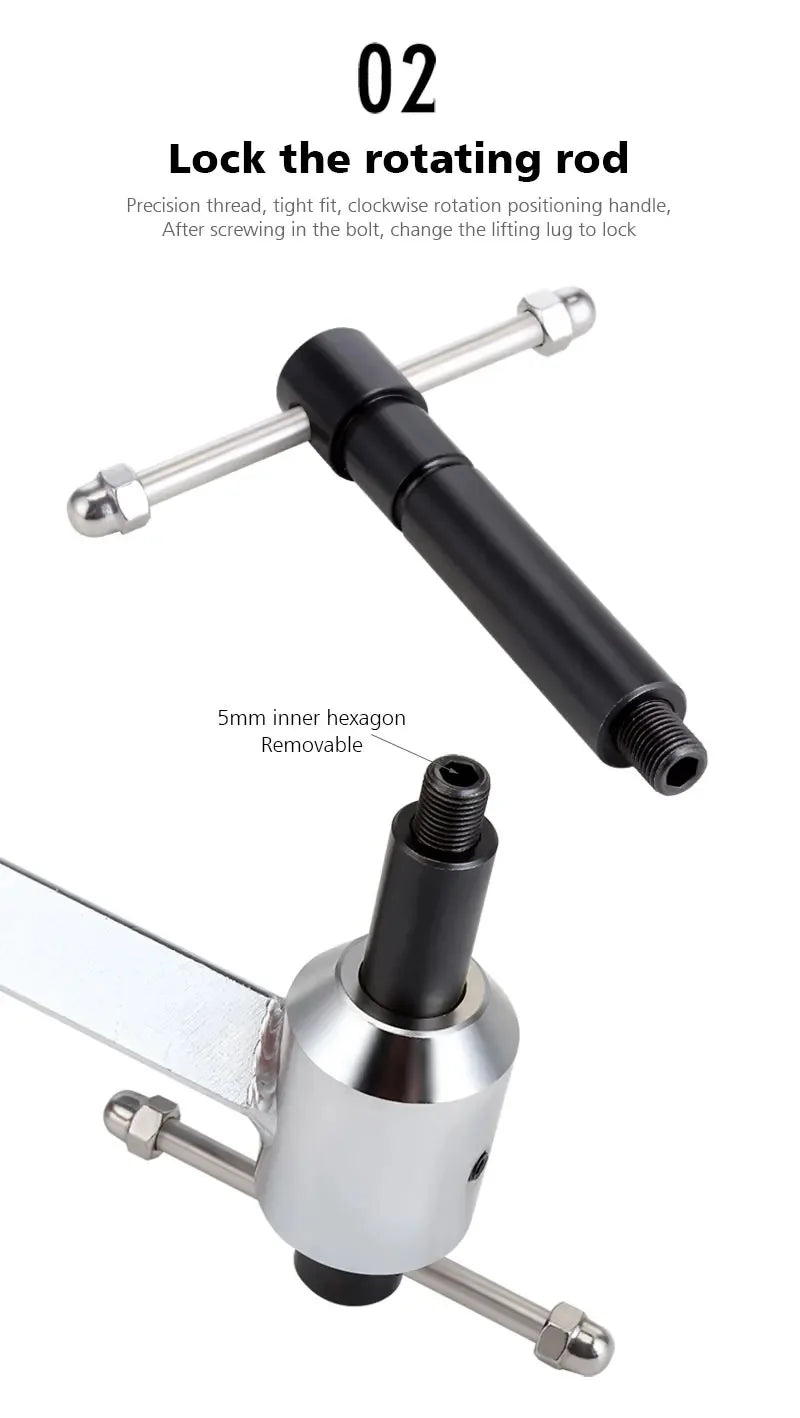

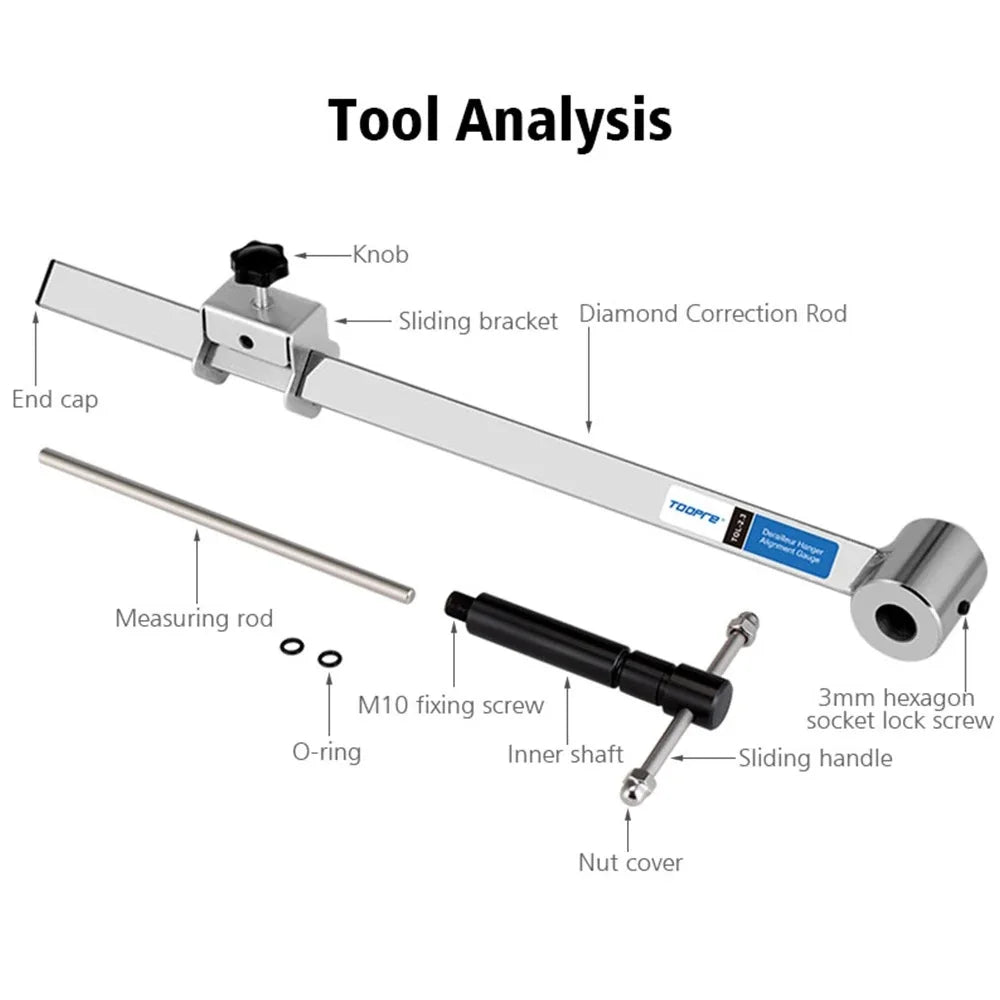

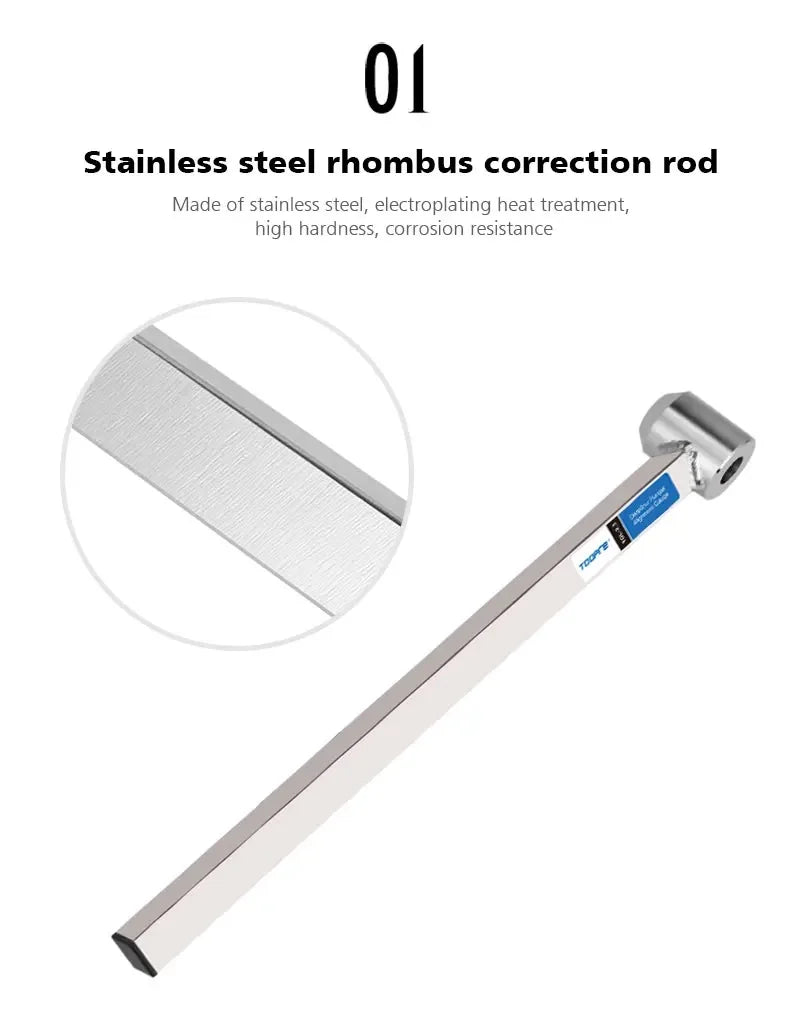

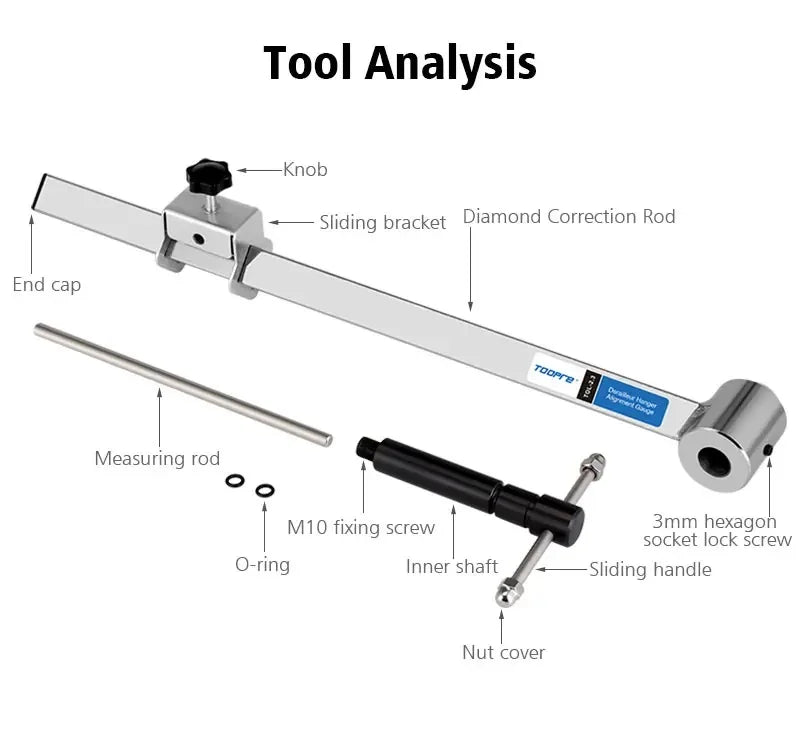

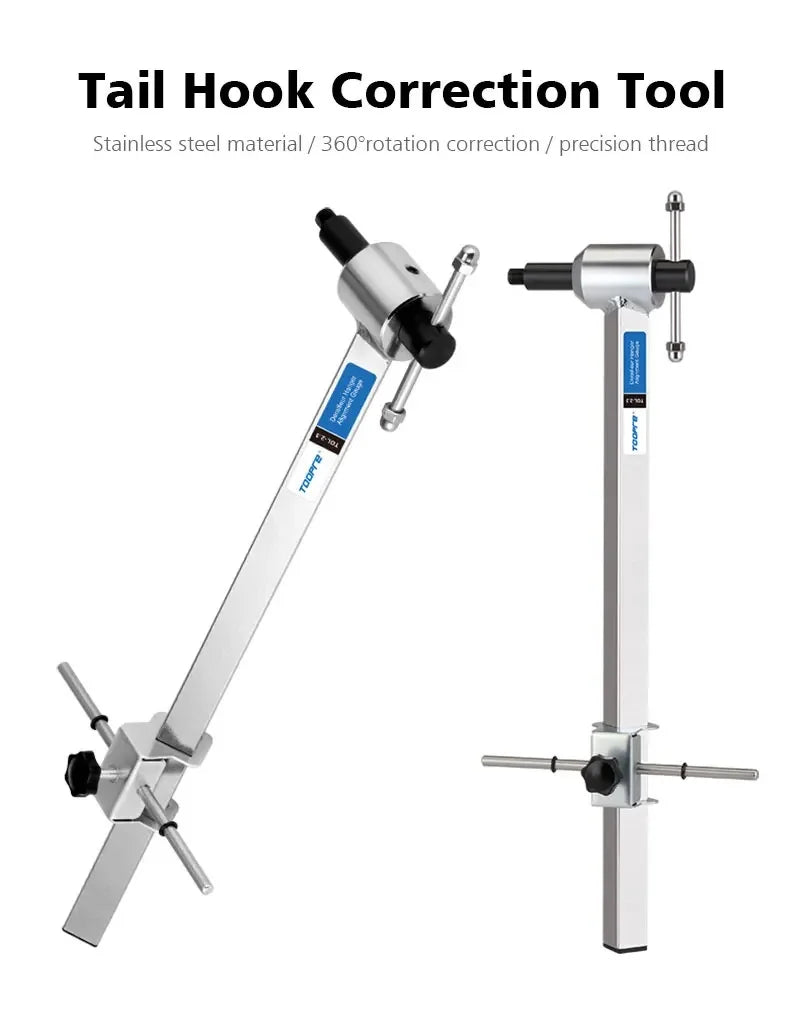

Made of stainless steel with electroplating heat treatment, this gauge offers high hardness, corrosion resistance, 360° rotating correction, CNC turning and milling threads, and a tight fit for precise measuring. The plum rotating handle also makes adjustment of the measuring rod easier.

Hanger straightener for simple alignment checks

This tool is an indispensable shop tool that can be used to both measure and straighten misaligned derailleur hangers, helping solve a high percentage of shifting problems.

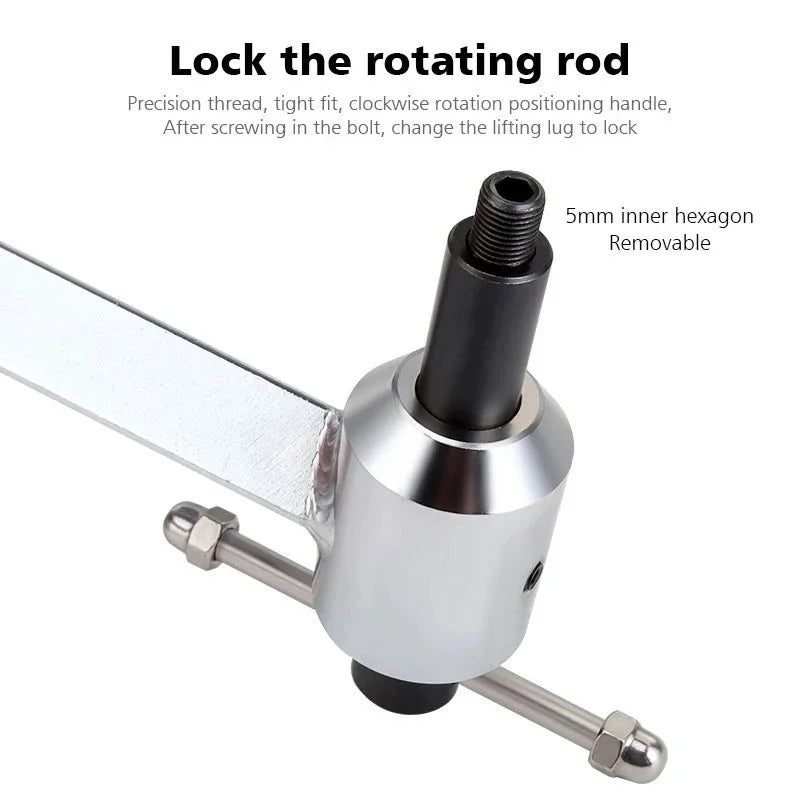

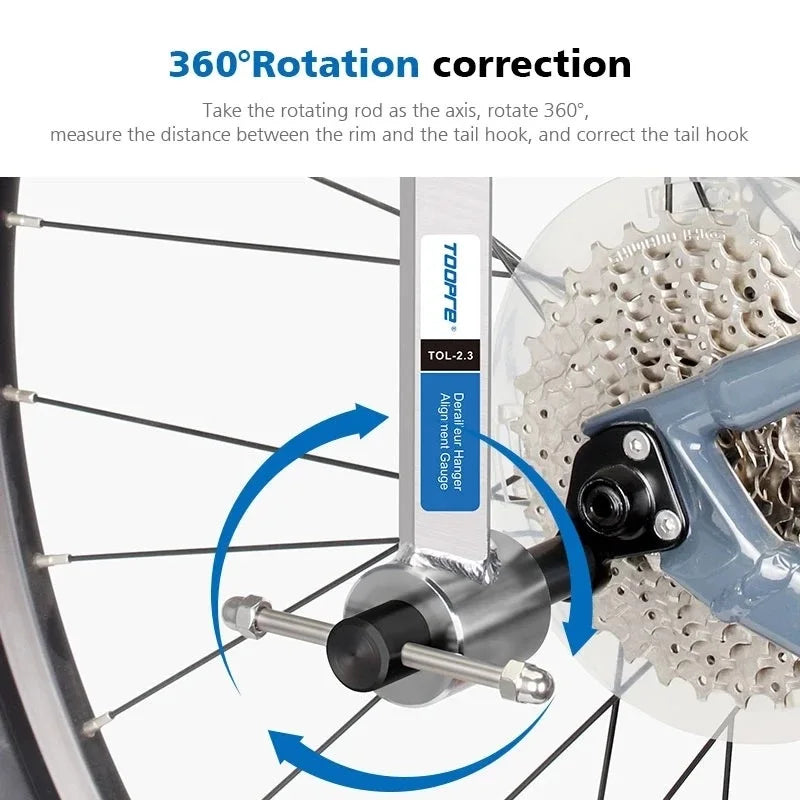

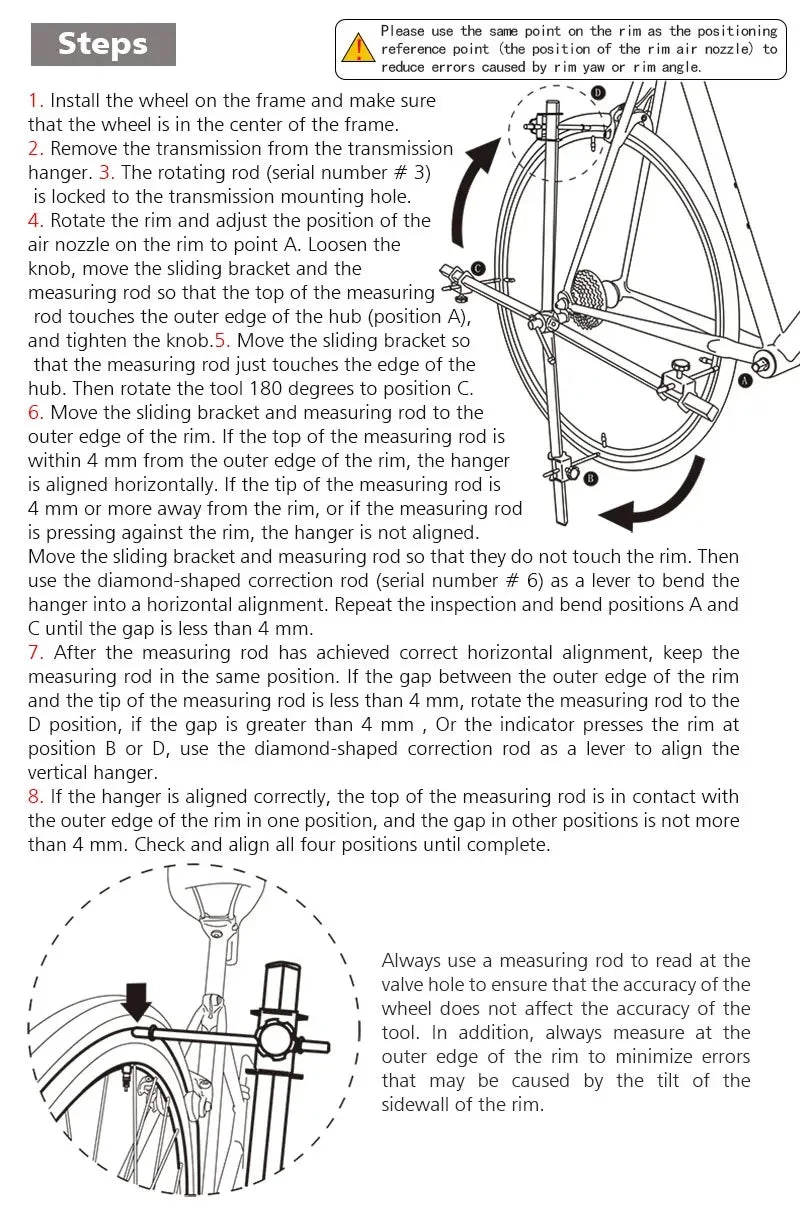

The tool threads directly into the derailleur hanger. The gauge bar holds a gauge which marks the distance to the wheel. Rotate the gauge with the wheel to the 3, 6, 9, and 12 o'clock positions to note any measurement differences, then apply pressure to the arm to correct the hanger.

Gauge bar made of heavy gauge, chrome plated steel
Adjusts to fit 20–29+ wheels
Replaceable threaded tip
Upgraded large inner shaft for added strength
Tighter tolerances for improved accuracy
Improved clearance and reach to fit more frame/hanger combos including low clearance thru-axle derailleur hangers

Dropout repair and rear derailleur hanger alignment

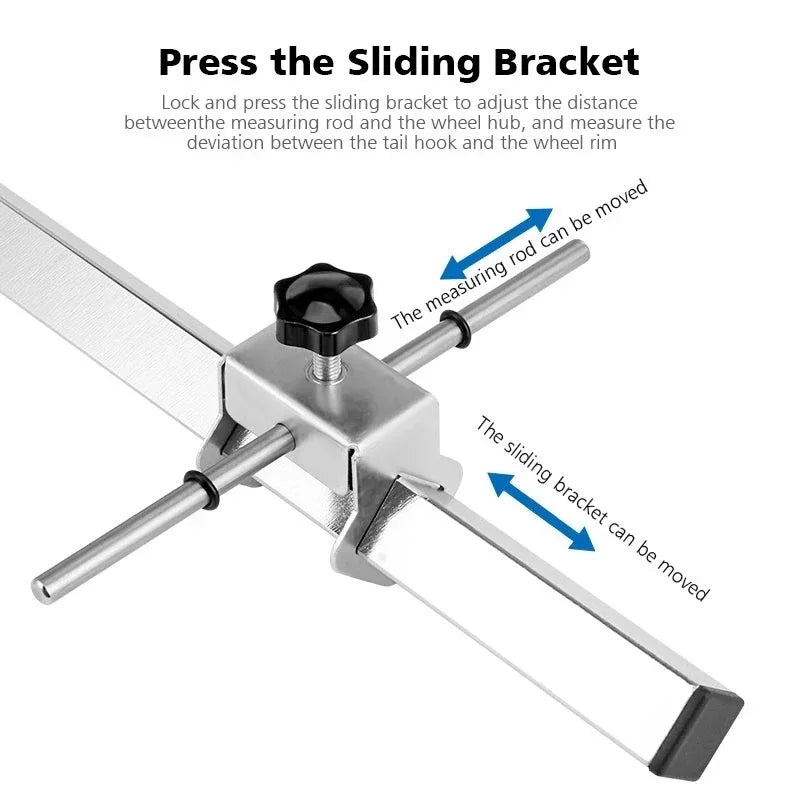

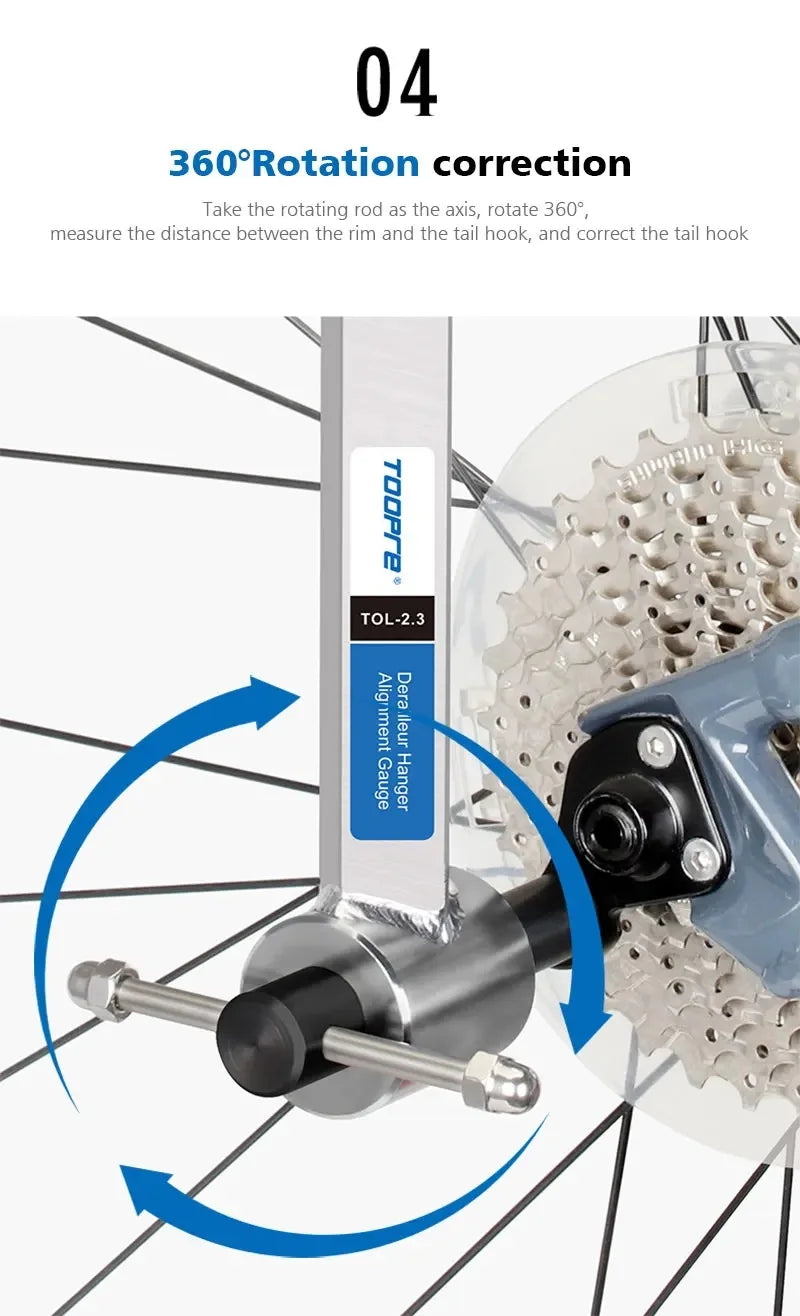

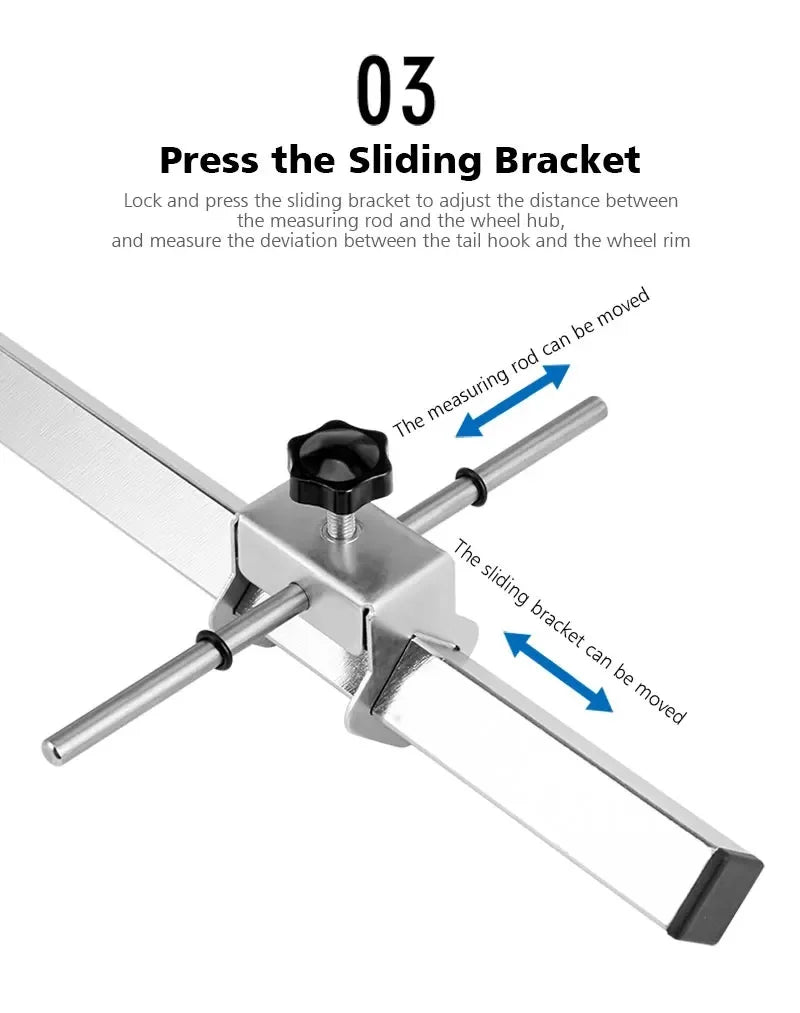

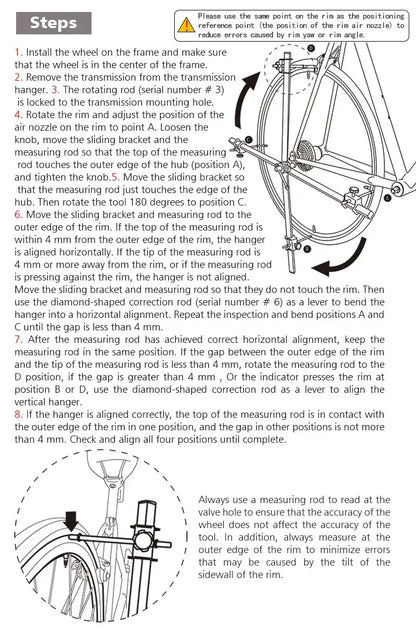

Used to correct rear derailleur lugs, this tool can help resolve many transmission shifting problems, especially on index shifting systems. Lock and press the sliding bracket to adjust the distance between the measuring rod and the hub, measure the deviation between the tail hook and the wheel rim, and use the swivel rod as the axis to rotate 360° for correction.

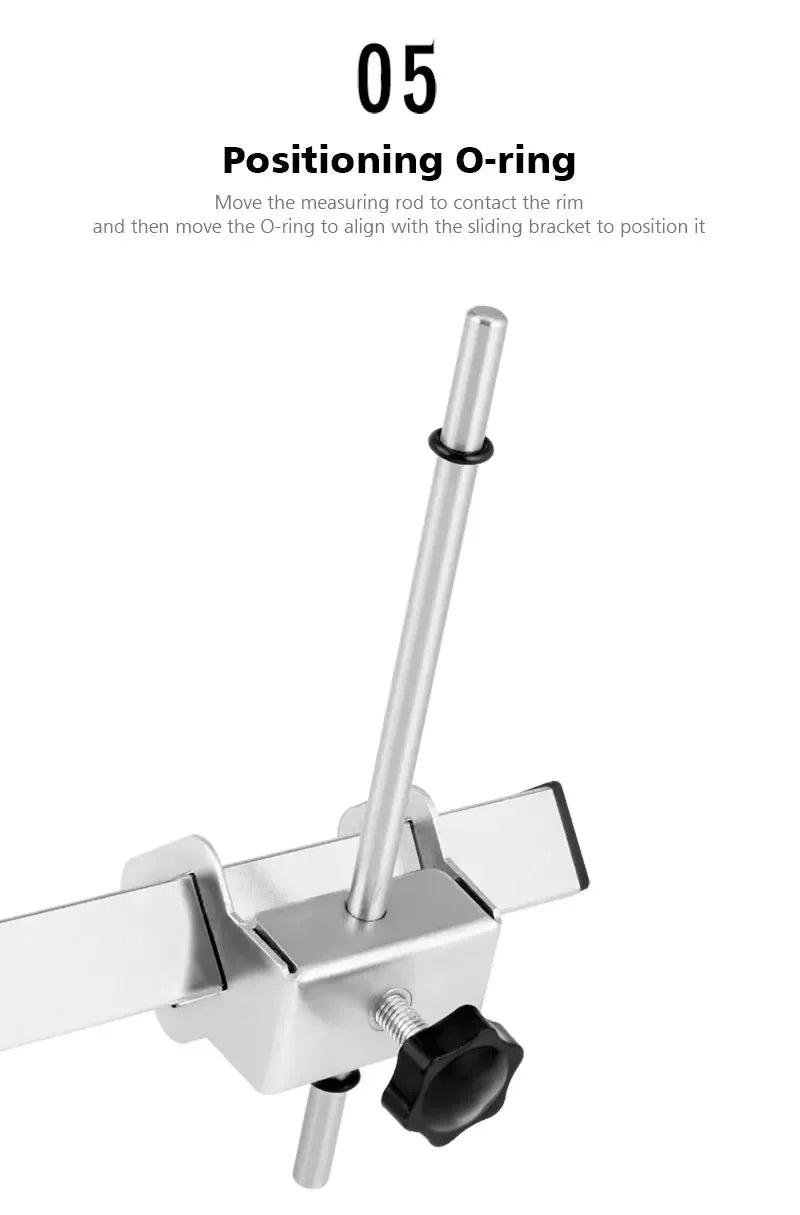

Positioning O-ring: move the measuring rod to touch the wheel rim, and position the O-ring by pressing the sliding bracket flush while moving the O-ring.

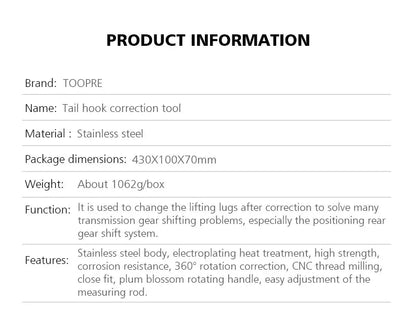

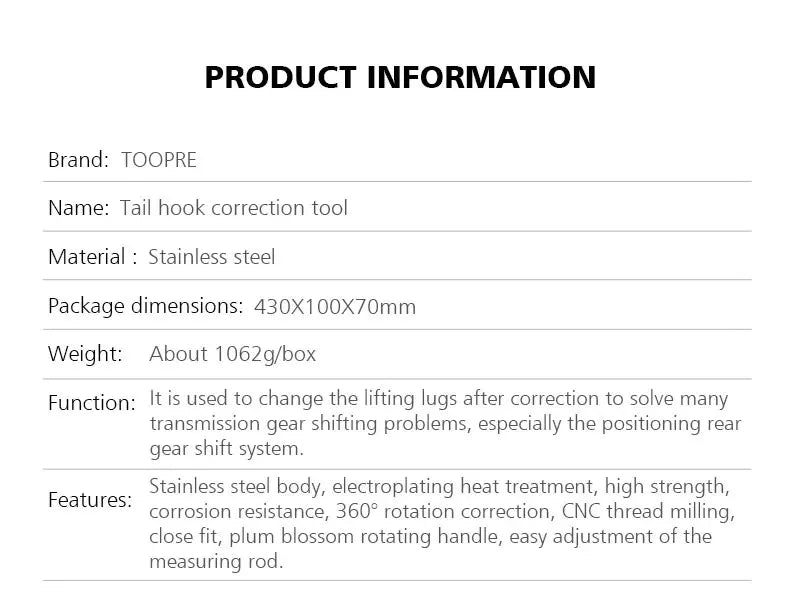

Specification:
Name: Bike Tail Hook Corrector
Color: Silver White
Material: Stainless Steel

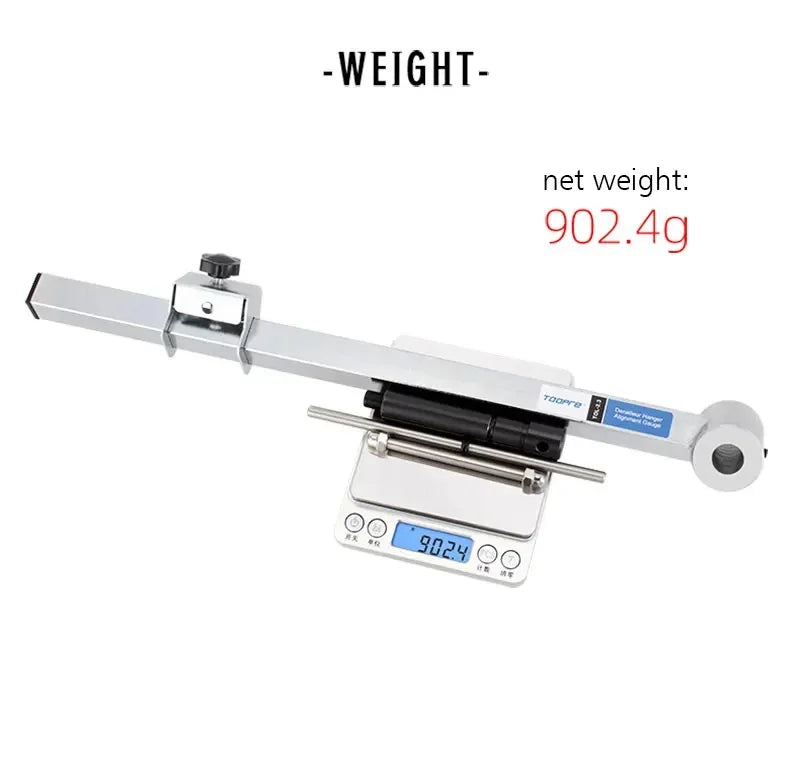

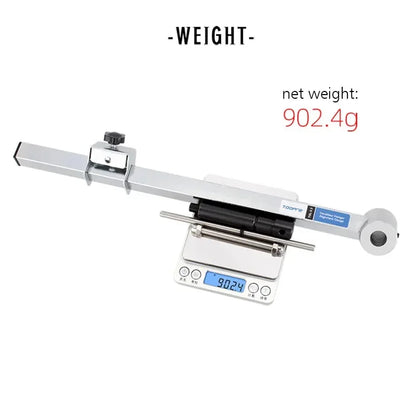

Weight: About 1062g / Box

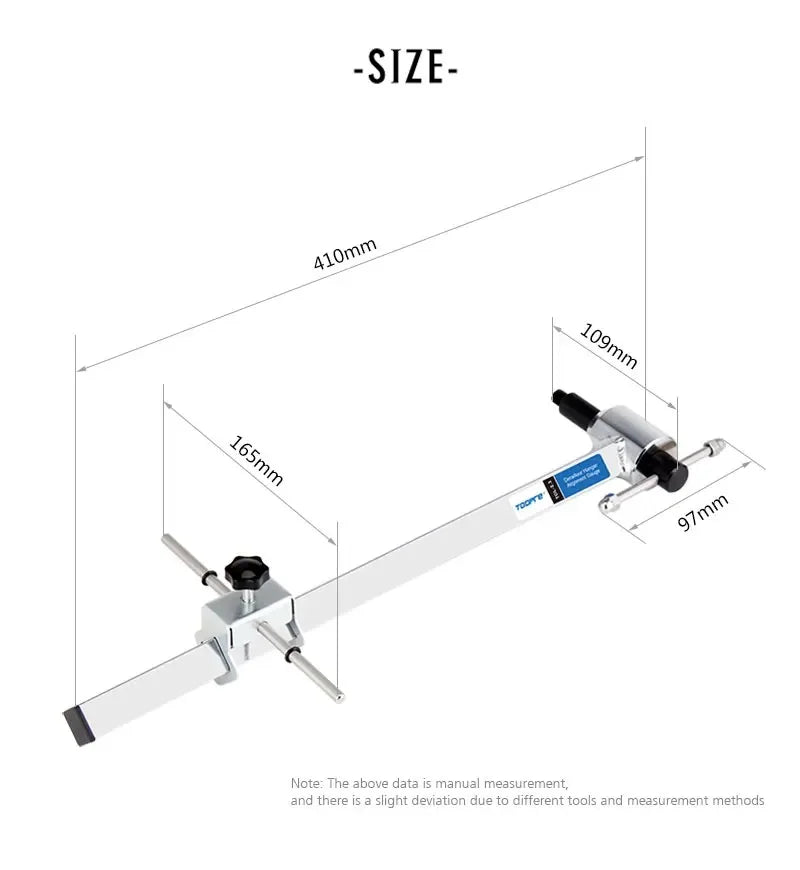

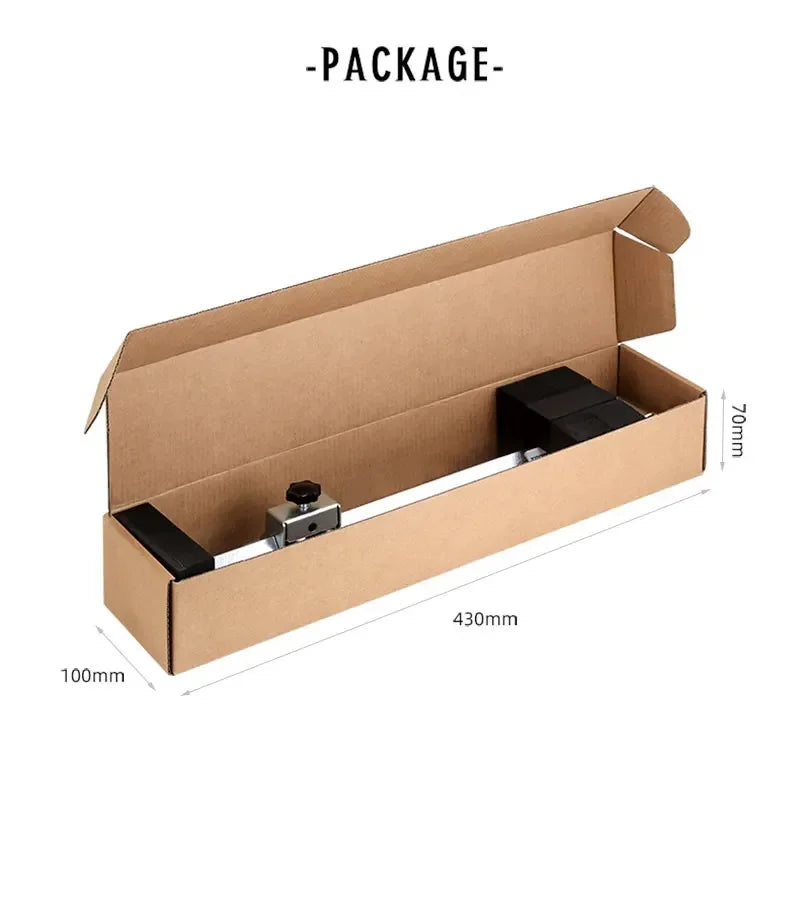

Package Size: 430*100*70mm/16.93*3.94*2.76in
Function: used to correct the rear shift lugs have solved many transmission shifting problems, especially positioning the rear shifting system.

Note: Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!

Please allow 1-2cm measuring deviation due to manual measurement.
