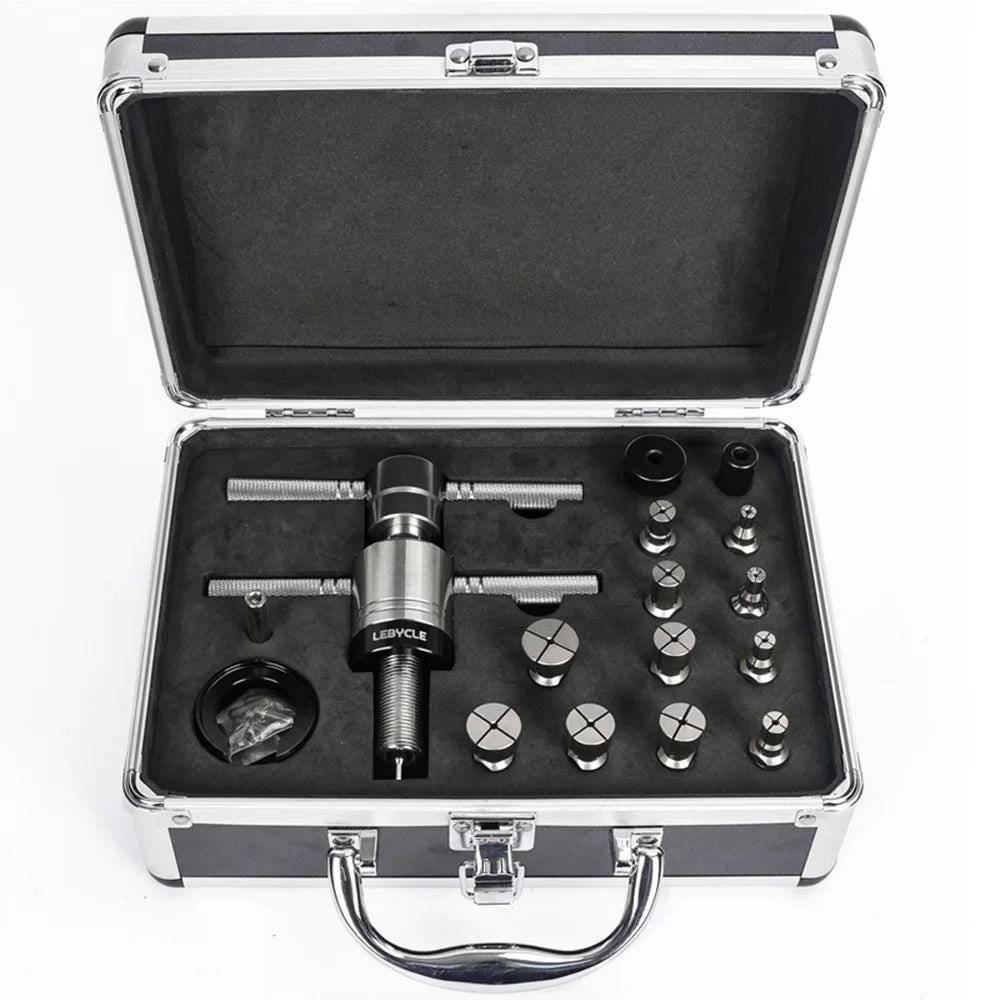

Bicycle Hub Bearing Tools

The tool stand can be purchased separately; tools are not included.

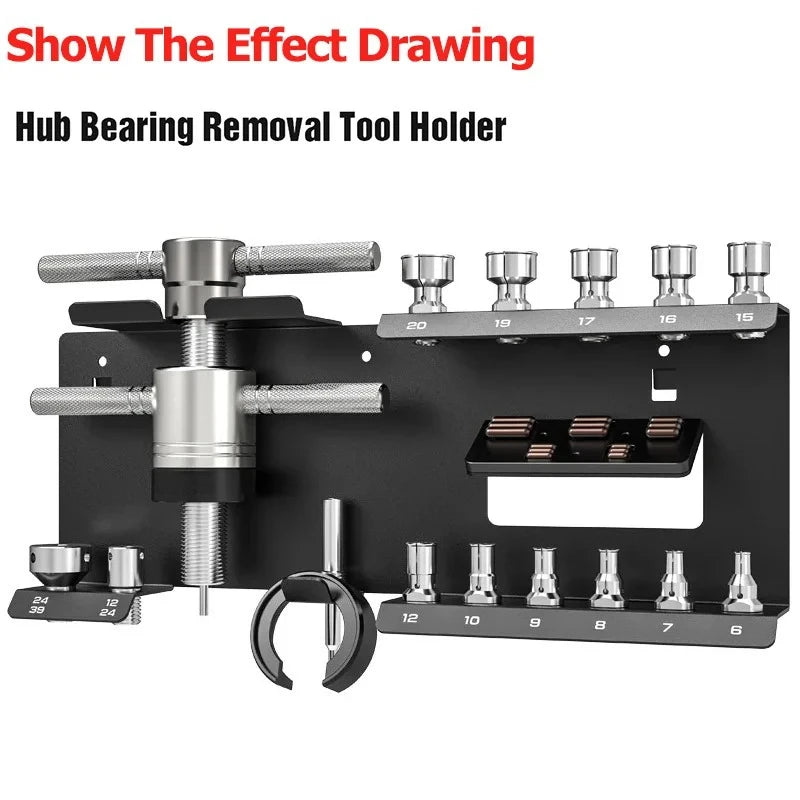

Hub Bearing Removal Tool Holder

Freehub Body and Bearing Extractor Overview

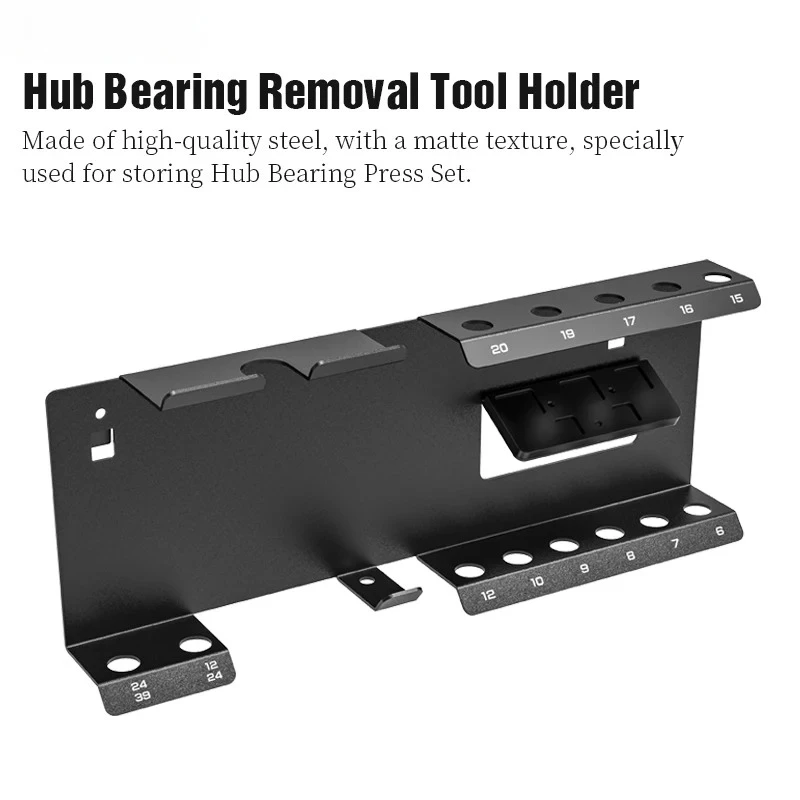

For road bicycle hub bearing removal and other bike repair tasks, this hub bearing removal tool holder helps keep the compatible setup organized on the bench. It is made of high-quality steel and includes magnetic attraction at the pin placement part.

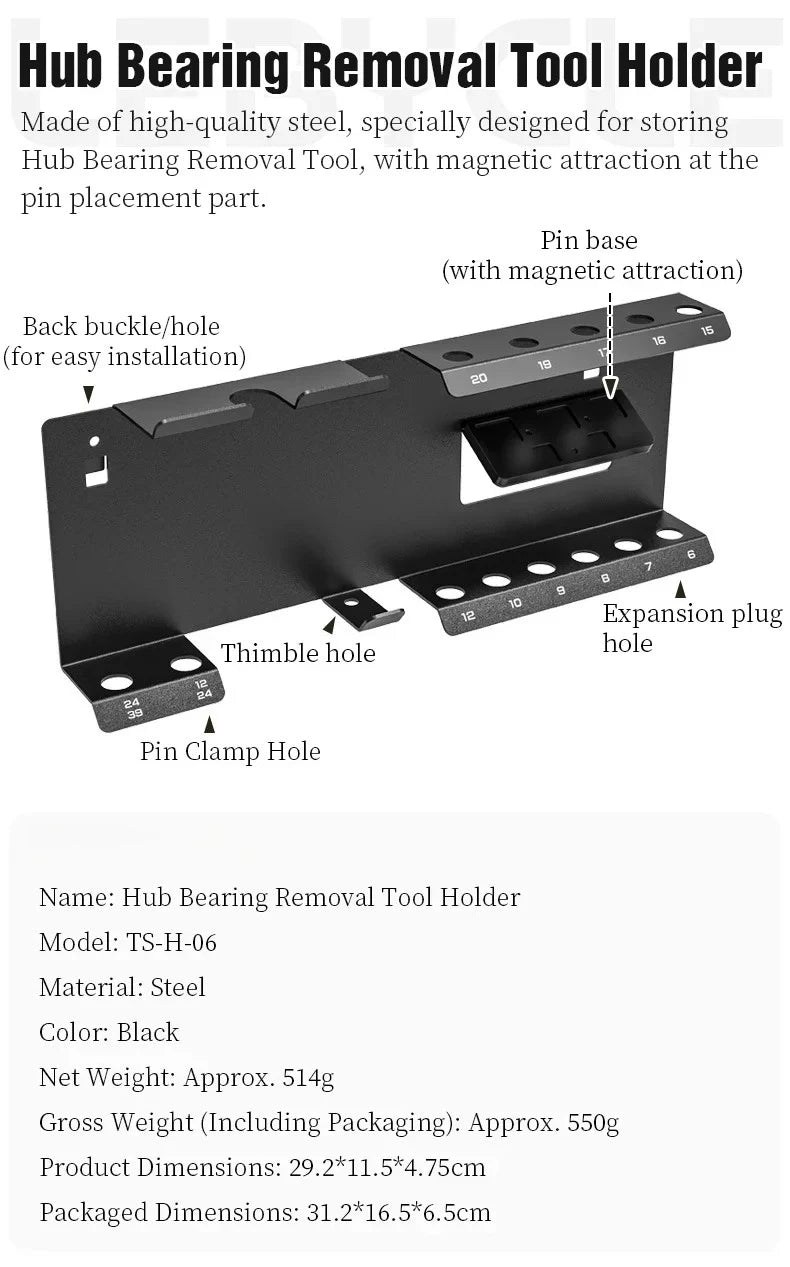

Holder details:
Name: Hub Bearing Removal Tool Holder
Model: TS-H-06
Material: Steel
Color: Black
Net Weight: Approx. 514g
Gross Weight (Including Packaging): Approx. 550g
Product Dimensions: 29,2*1l.5*4.75cm
Packaged Dimensions: 31.2*16.5*6.5cm

Hub Service and Bike Repair Compatibility

Compatible tool details:

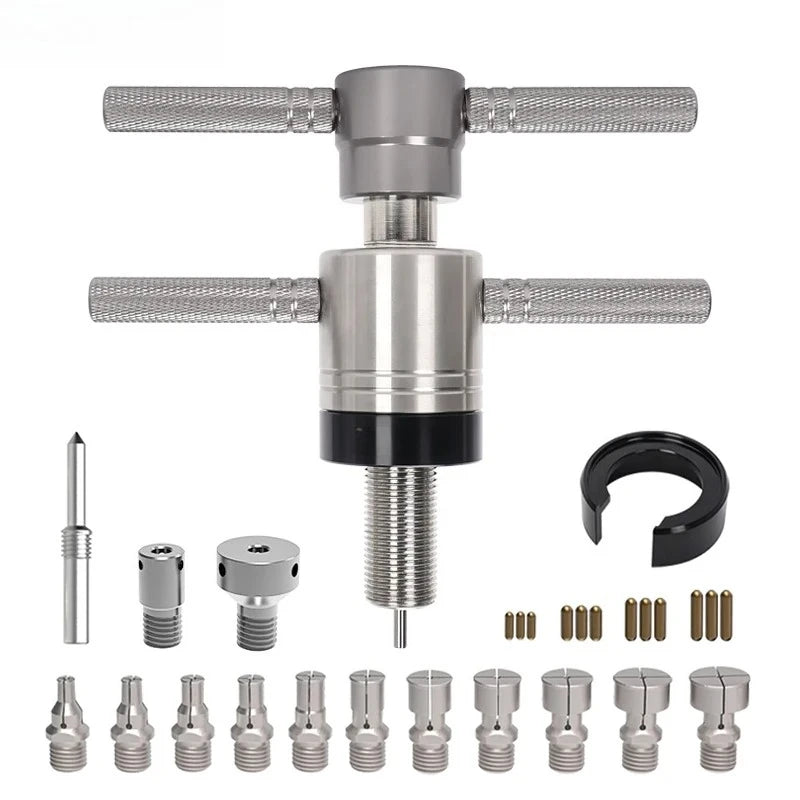

Name: Hub bearing removal tool

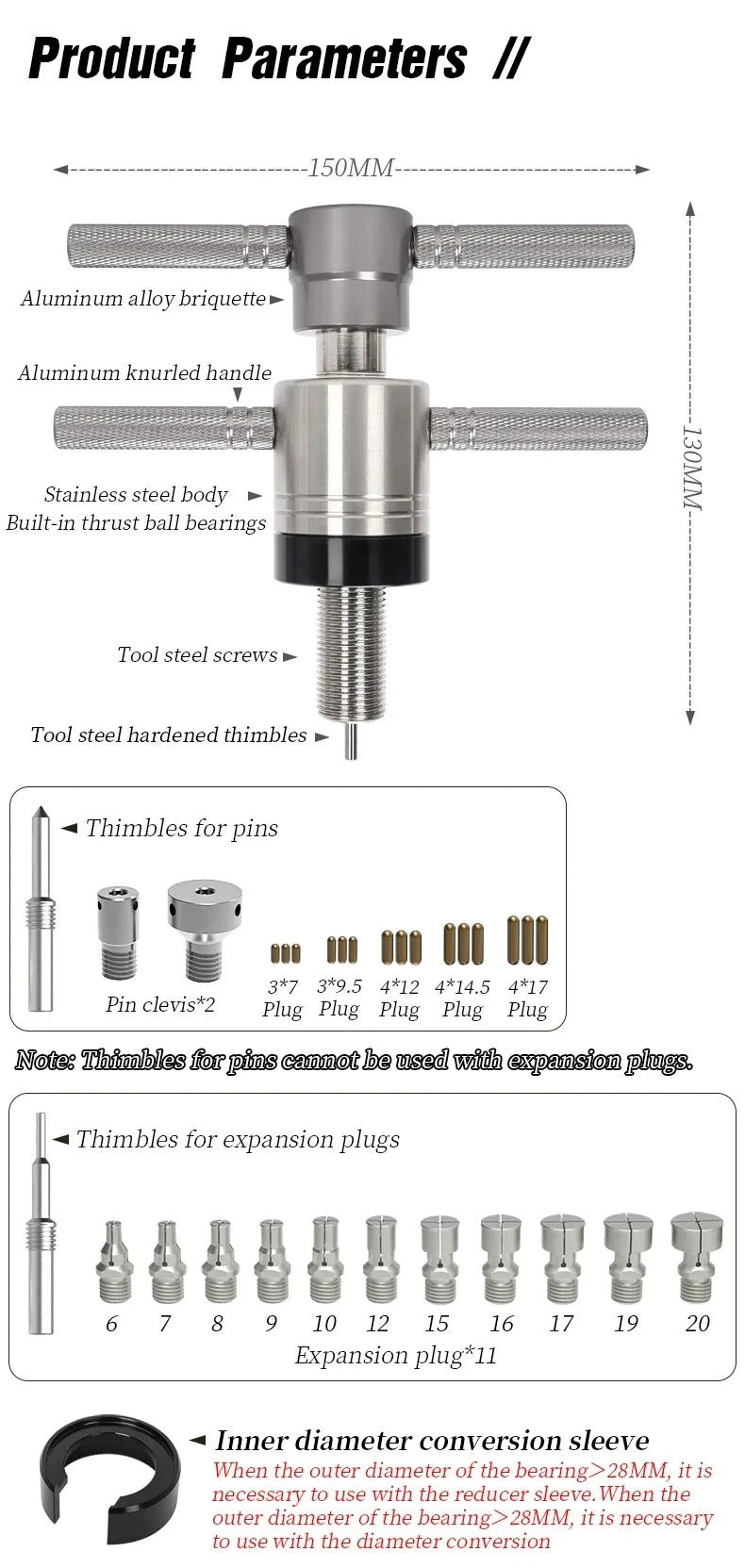

Material: Stainless steel body, tool steel thimble/pin/expansion plug screw, aluminum alloy press/handle
Weight: About 1560g

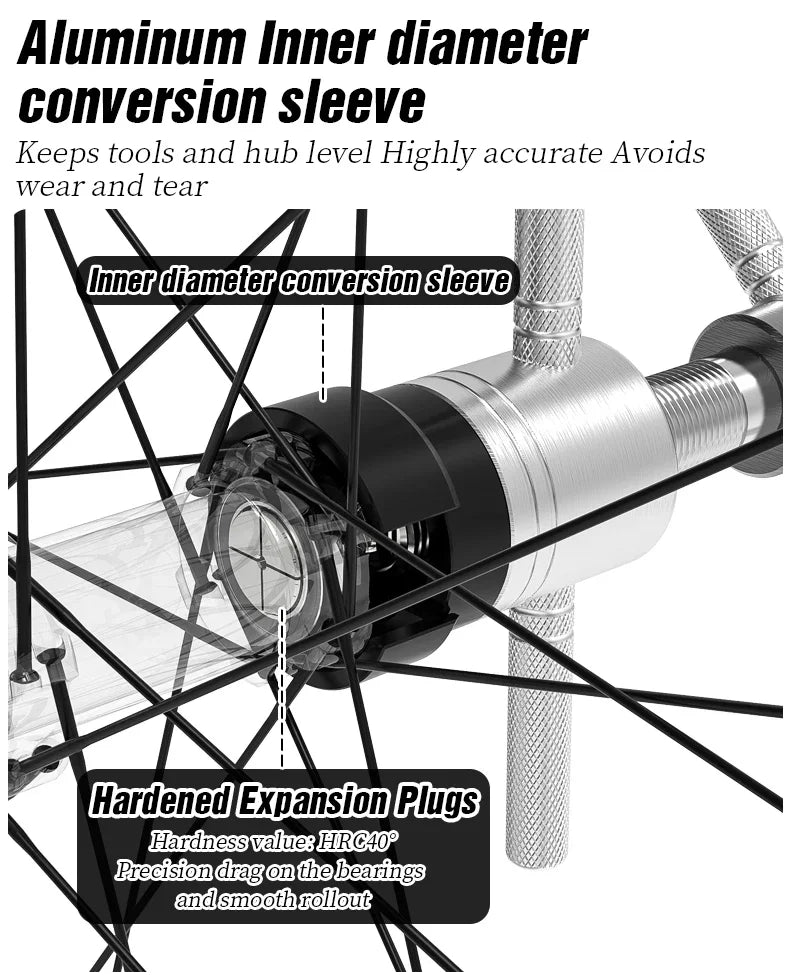

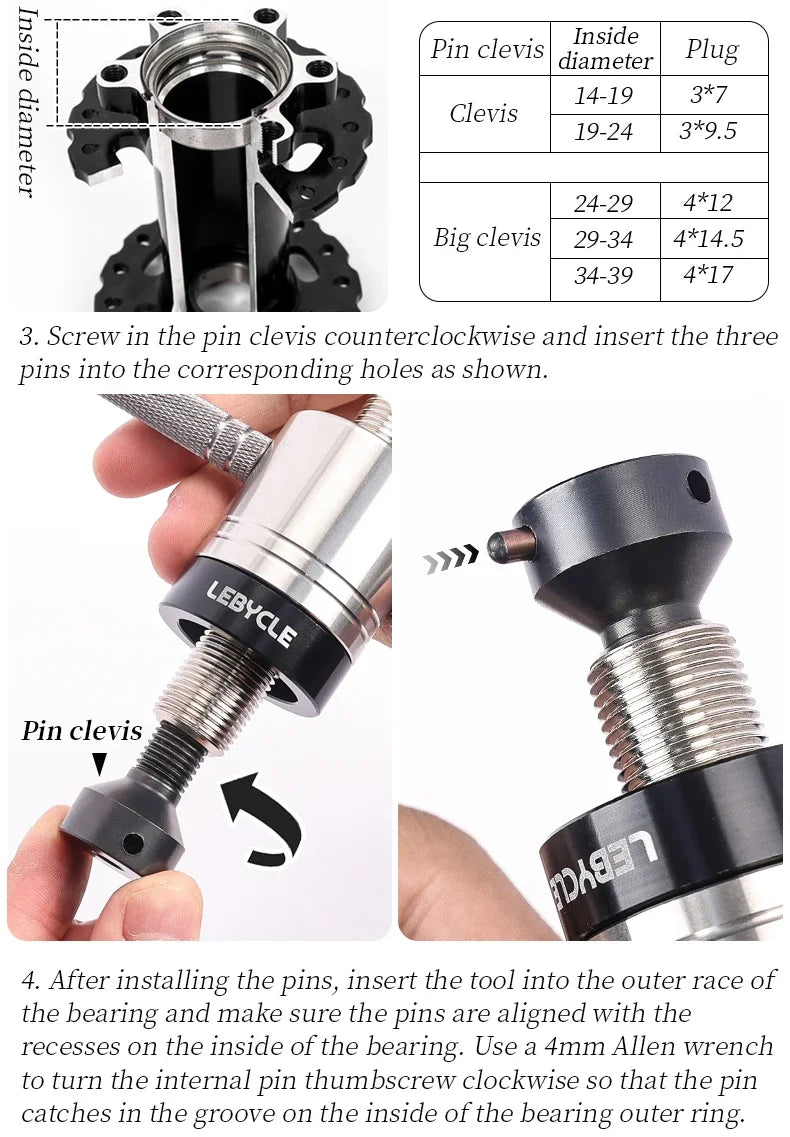

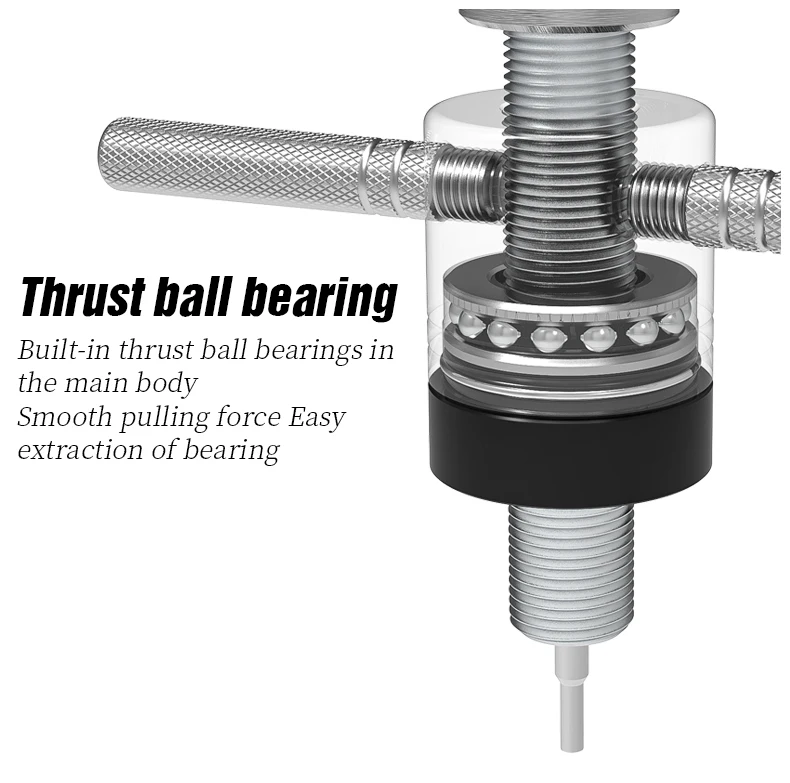

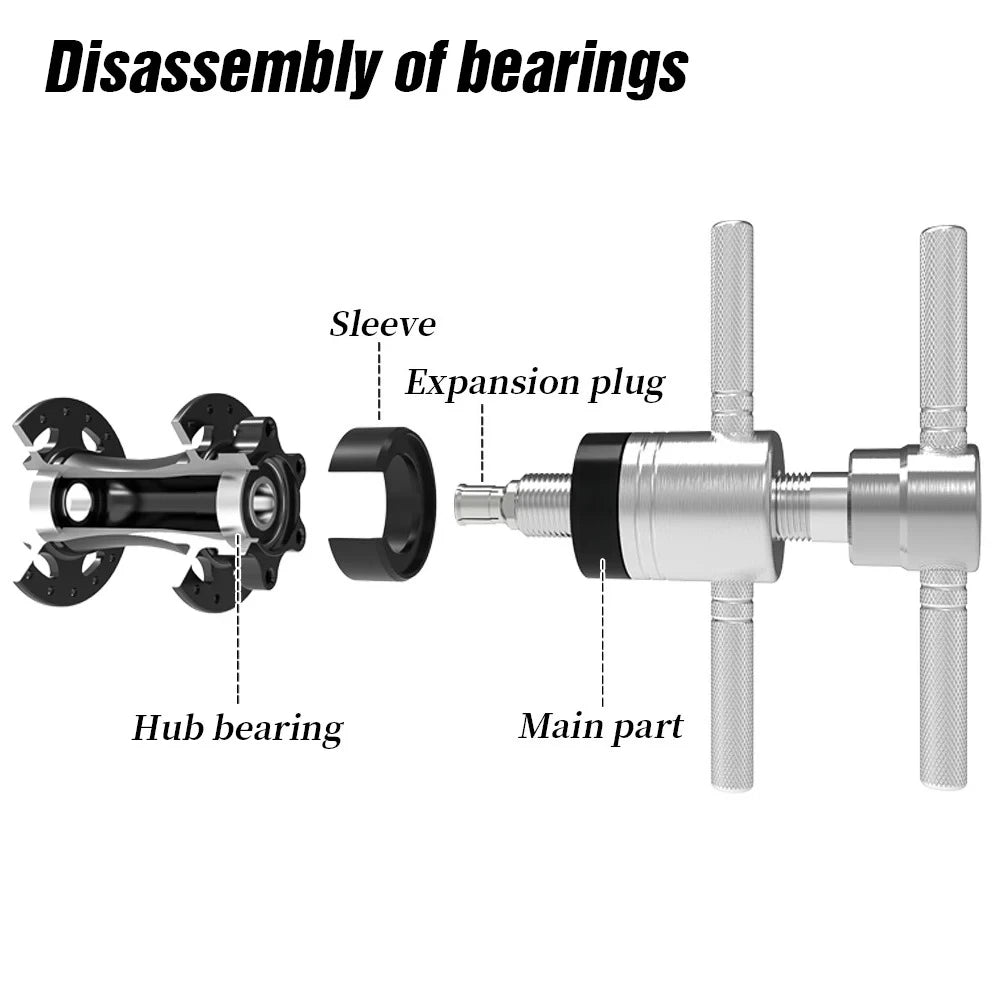

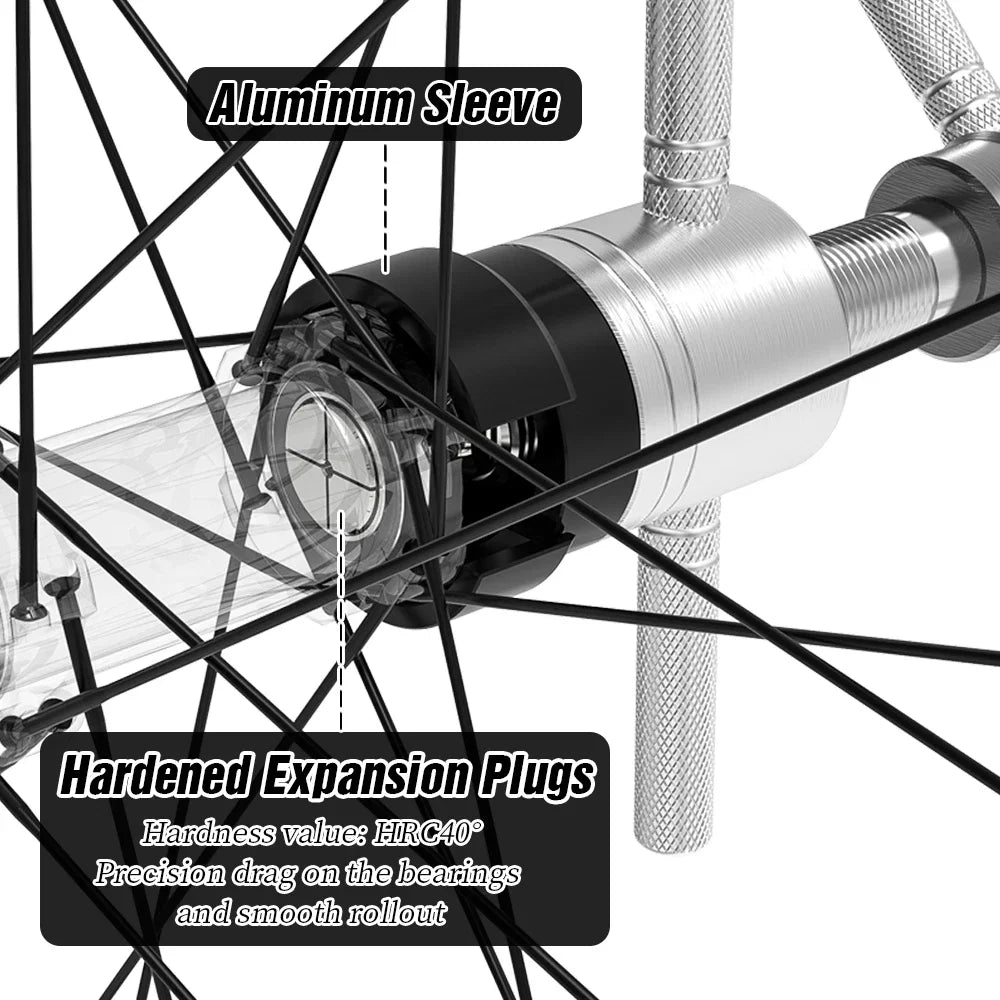

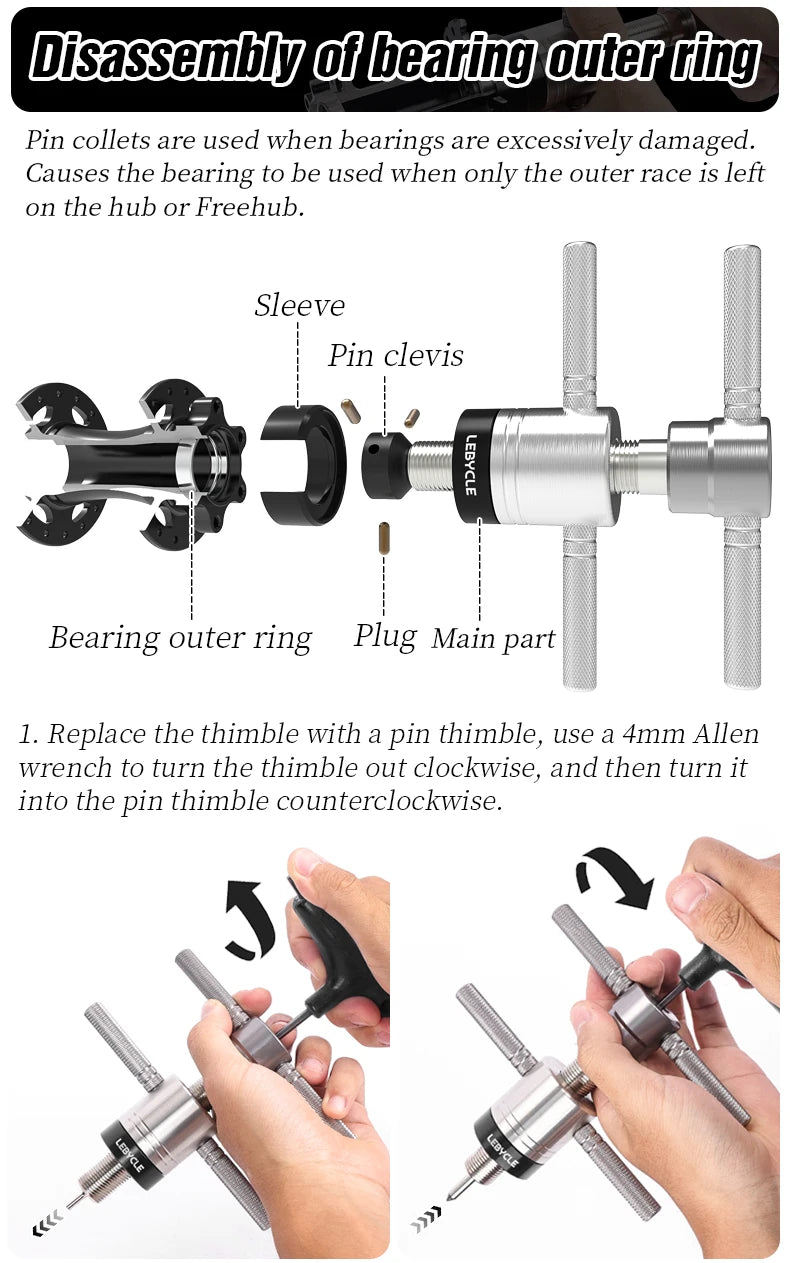

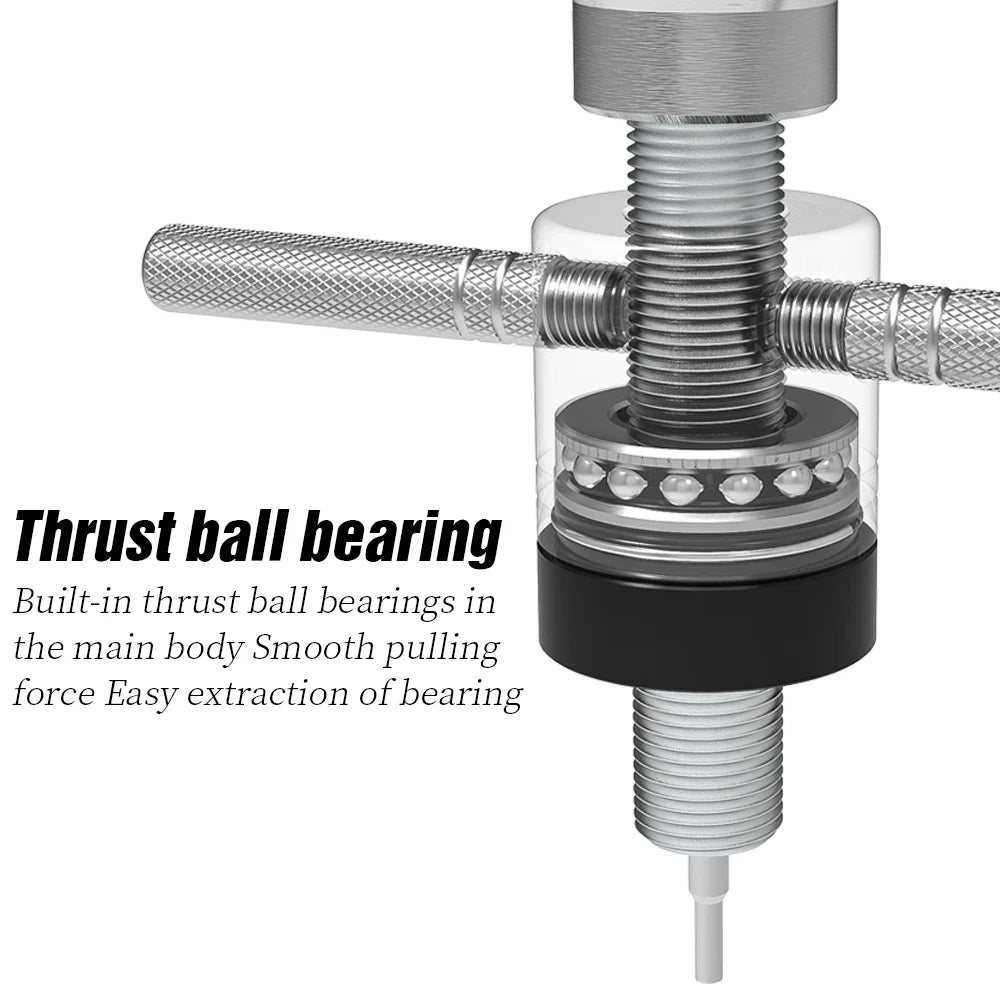

Features: Special pin clevis for removing damaged hub bearings, built-in thrust ball bearing, and smooth pull-out bearing support. Suitable for hubs with inner diameters of 6, 7, 8, 9, 10, 12, 15, 16, 17, 19, and 20 mm, plus freehub bearing and bearing outer rings with inner diameters from 14 to 39 mm.

Purchase tip: Thimbles for pins cannot be used with expansion plugs.

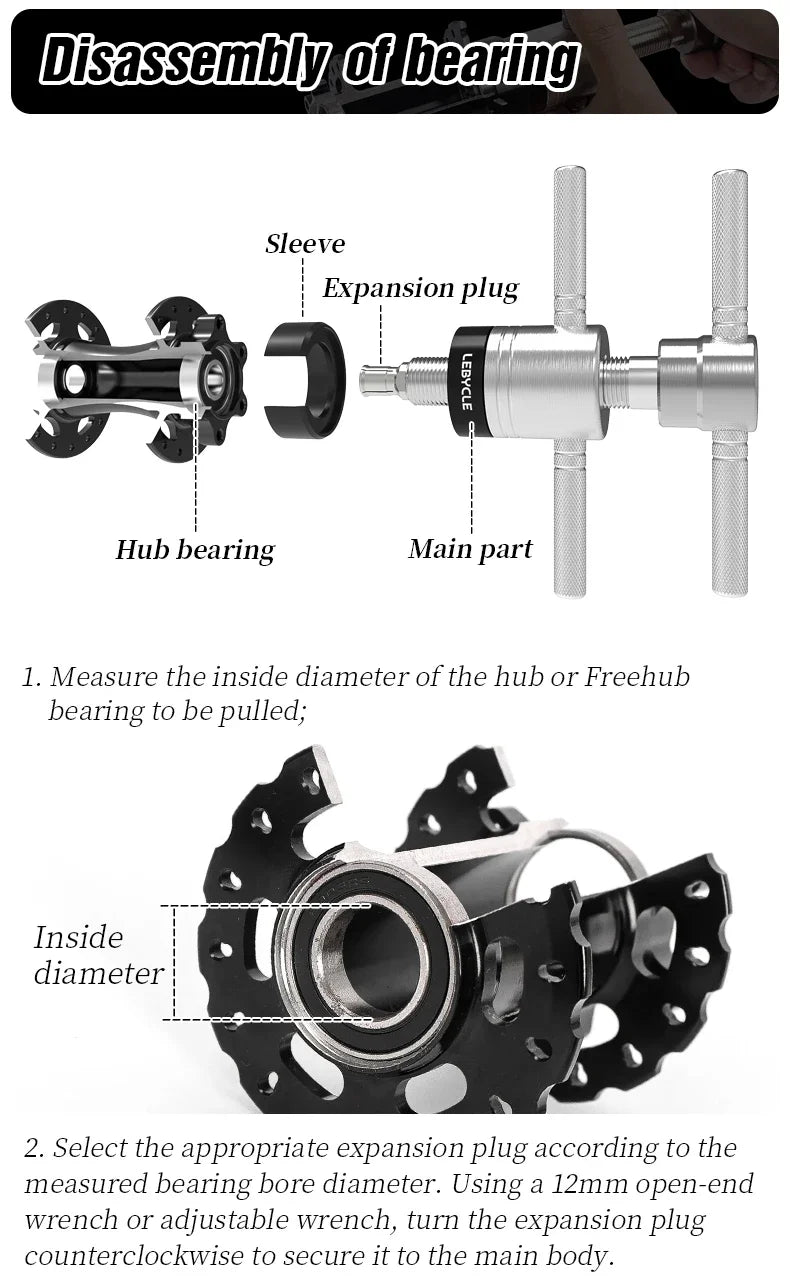

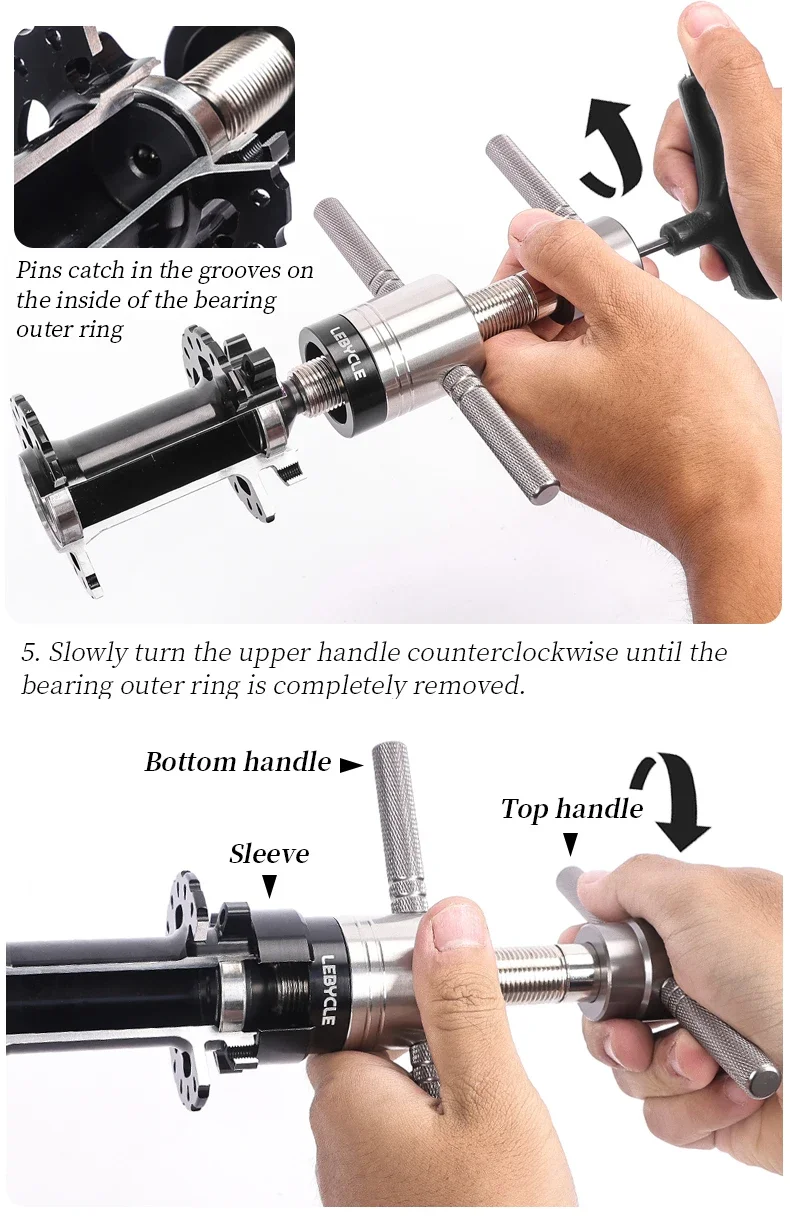

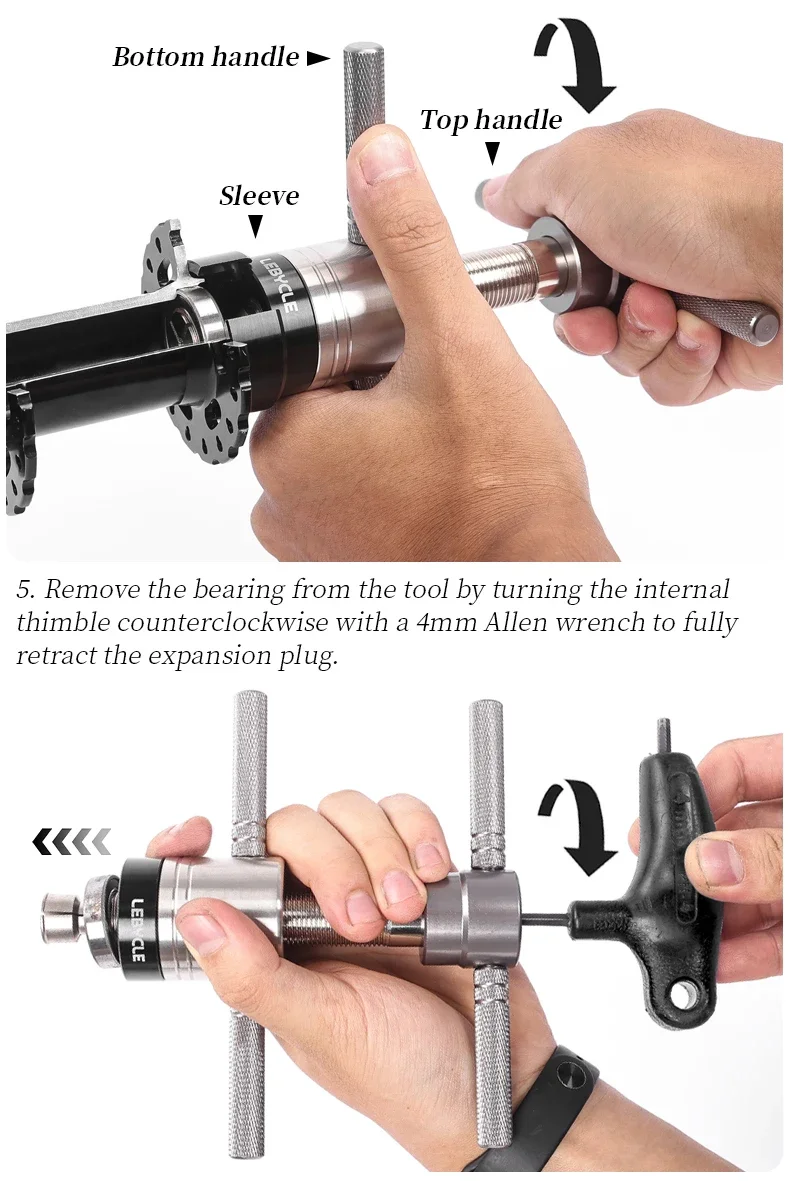

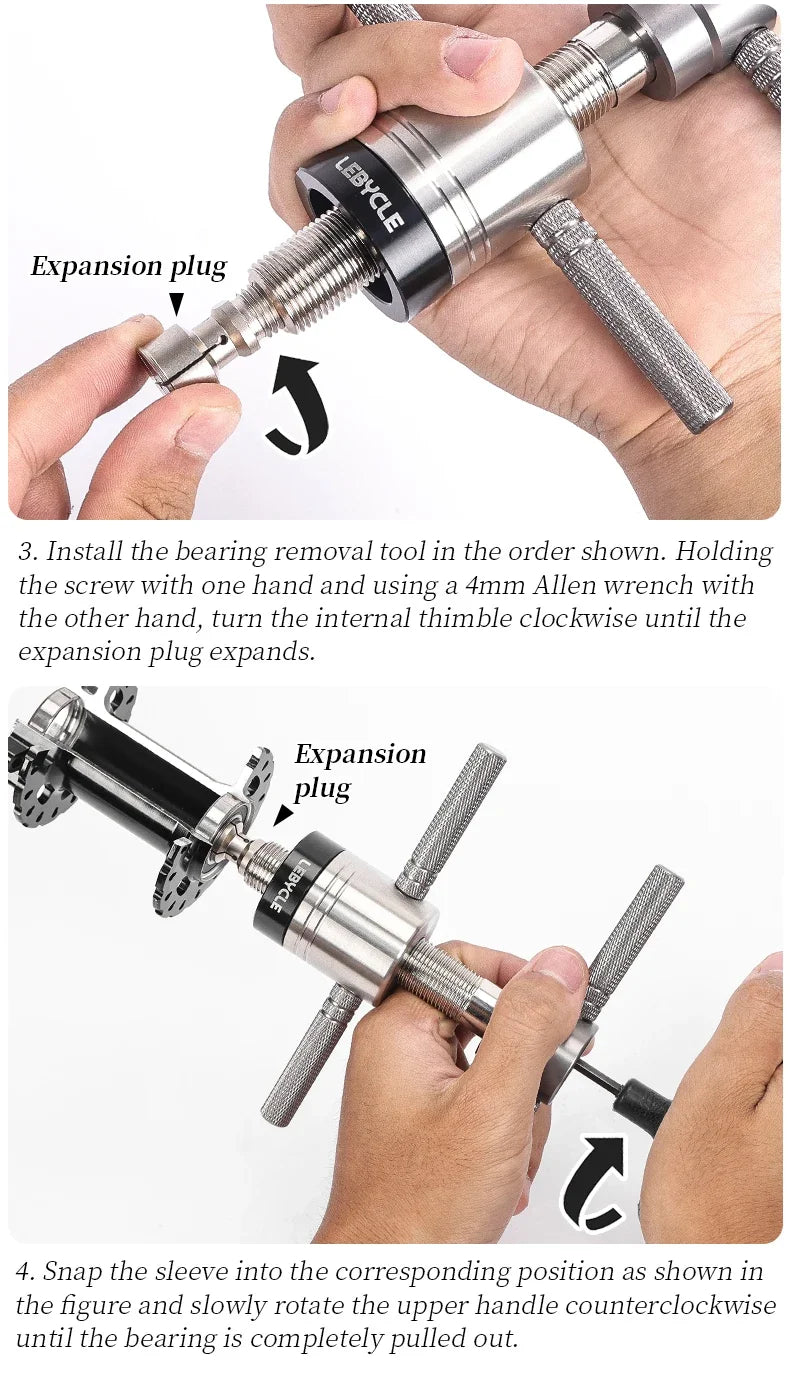

The two thimbles need to be used with different accessories and tools; they cannot be used at the same time. Please see the figures for reference and follow the instructions carefully before use.
