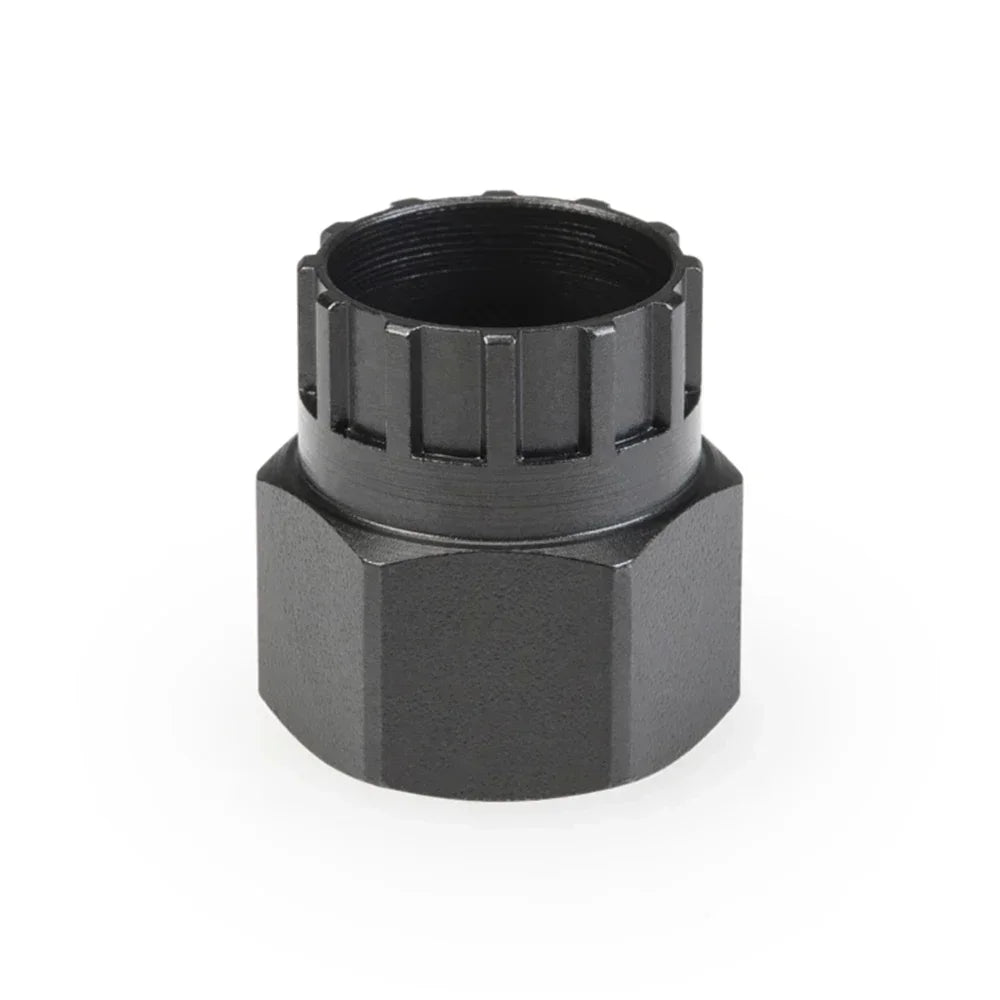

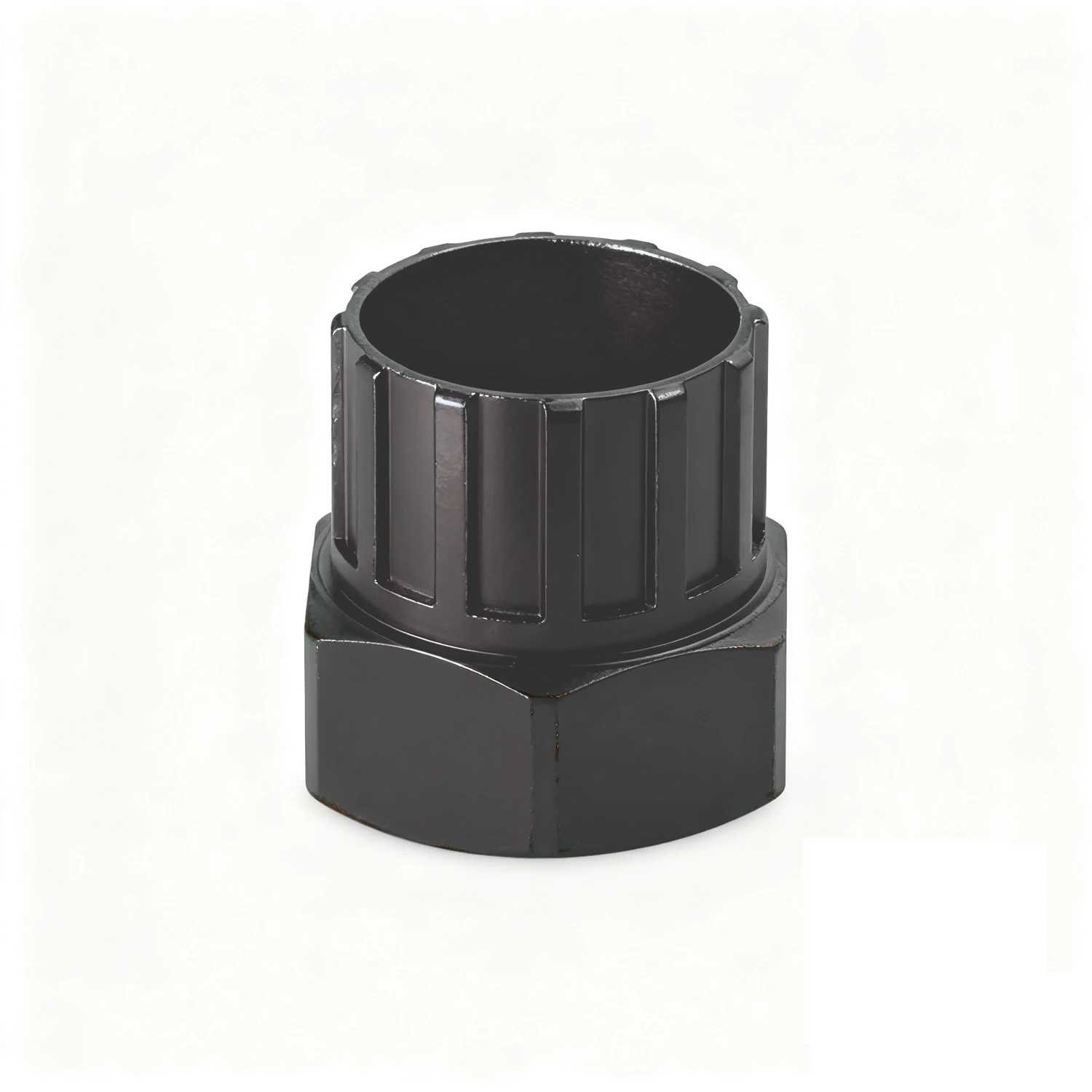

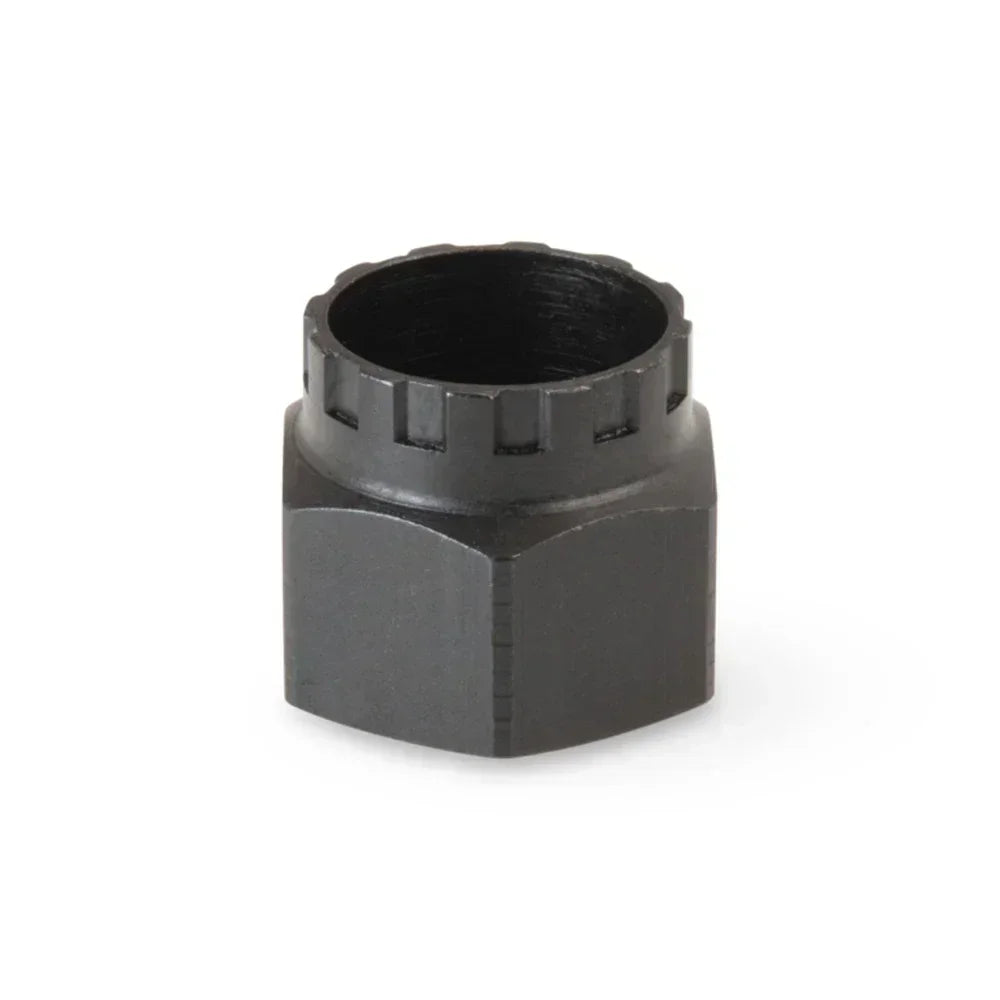

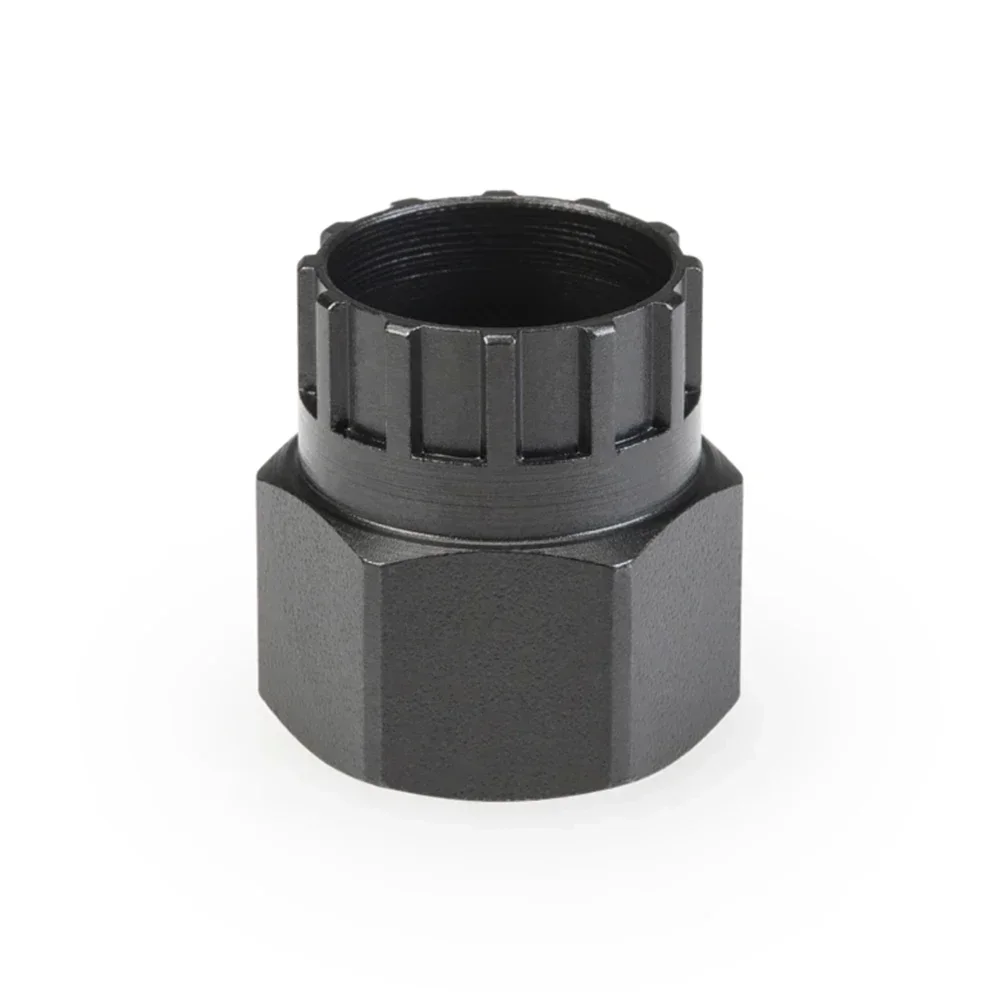

FR-5.2 FEATURES

Fits 12-spline tool fittings with an approximate outer diameter of 23.4 mm including:

• Cassette lockrings from Shim ano, SR AM (including 1x), Sun Race, Sun Tour, Ch ris Ki ng and others

• Disc brake lockrings and lockring adapters with 12 internal splines from Shim  ano and other brands

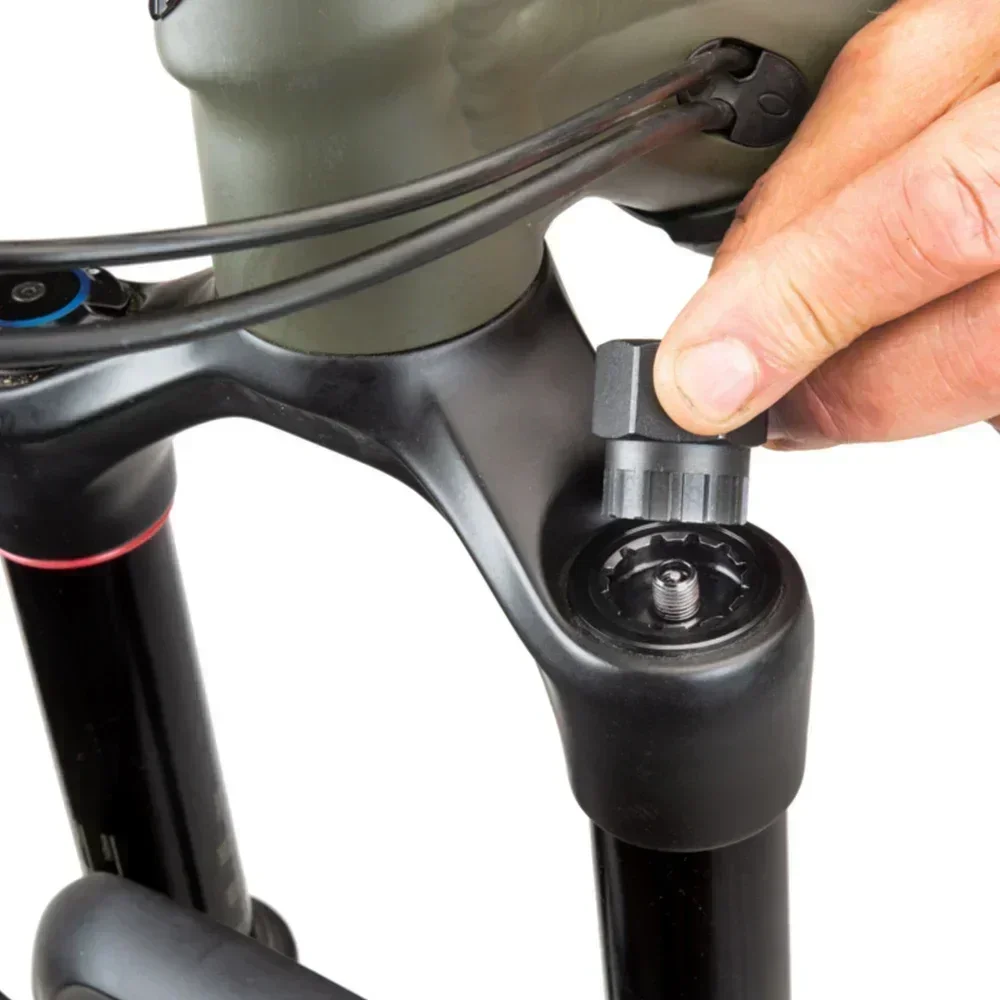

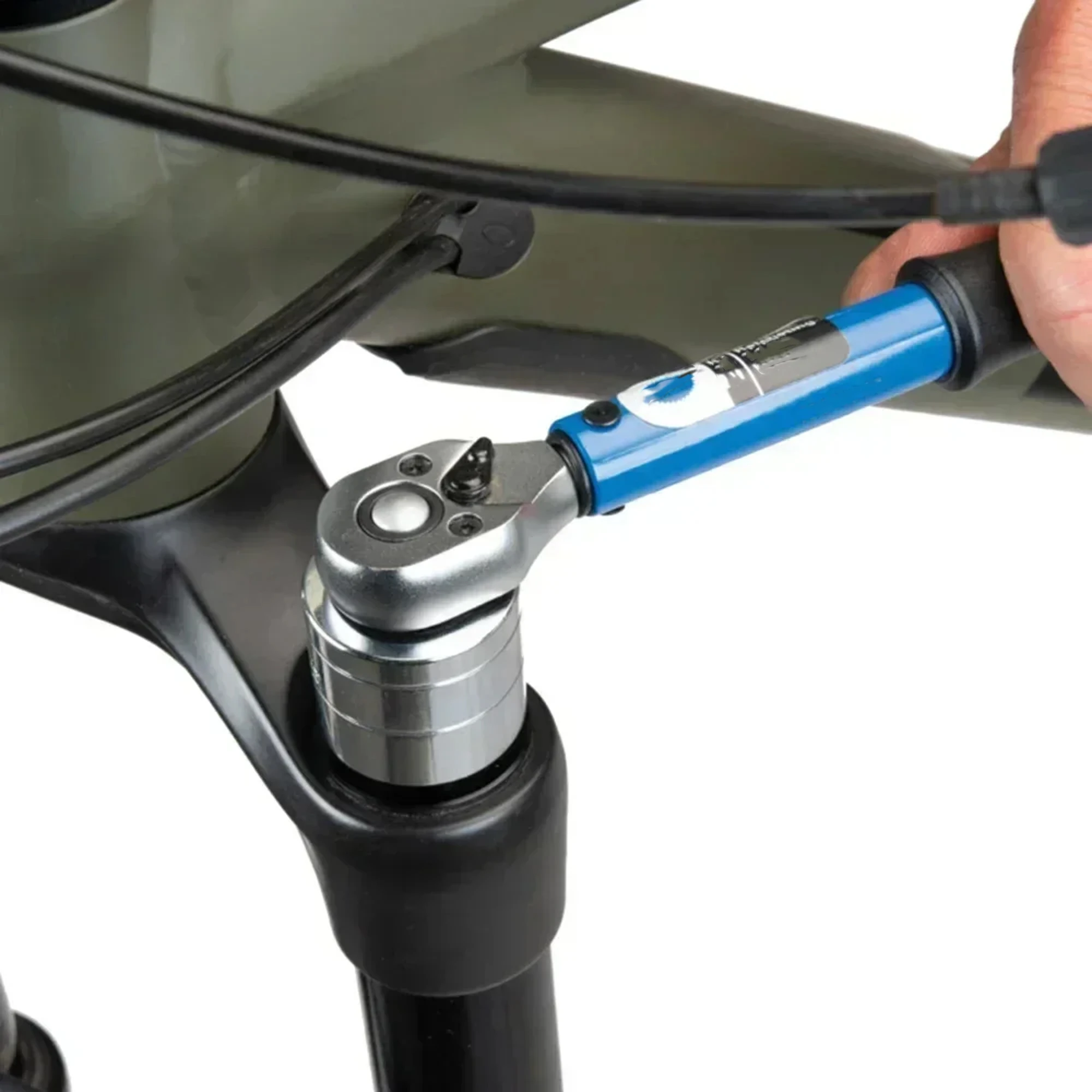

• Top cap of some Ro ck Sh ox suspension fork models including P ike, Ly rik, S ID, Reve lation, Re ba, and Par  agon

Center bore for axle clearance is 12 mm.

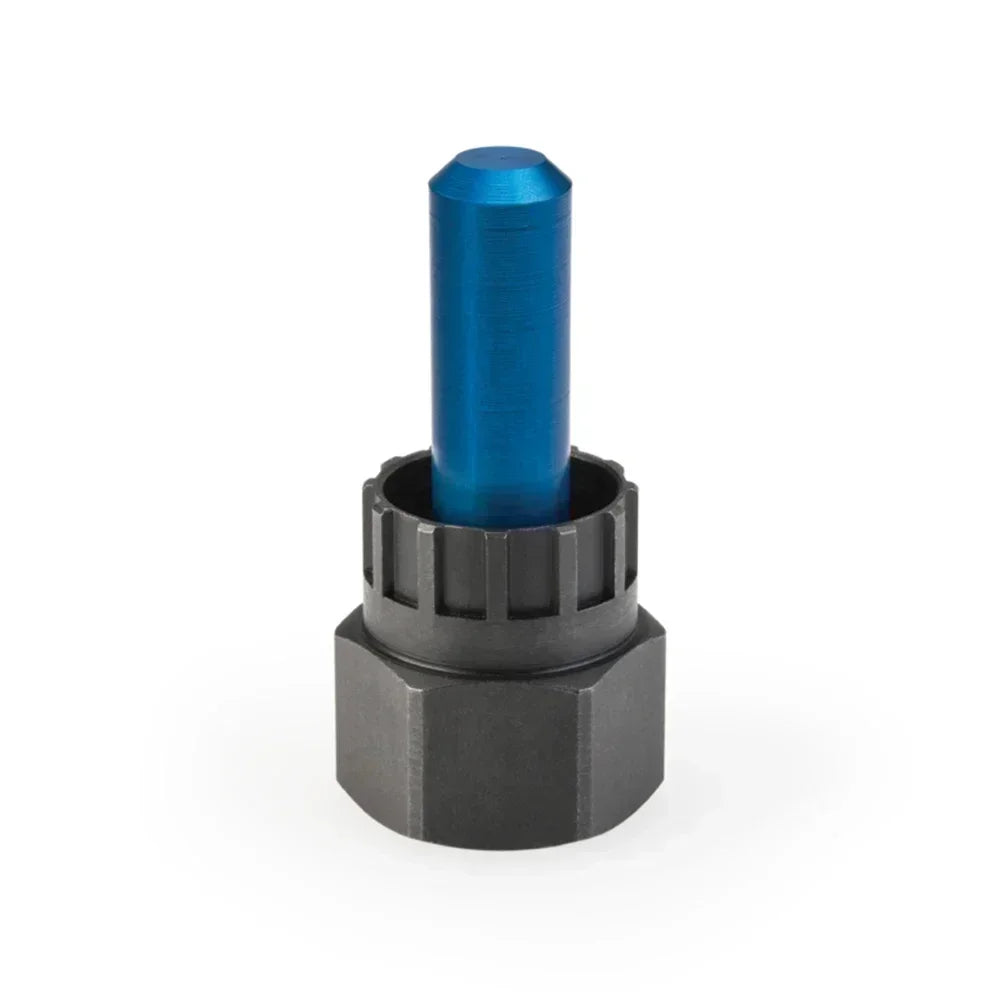

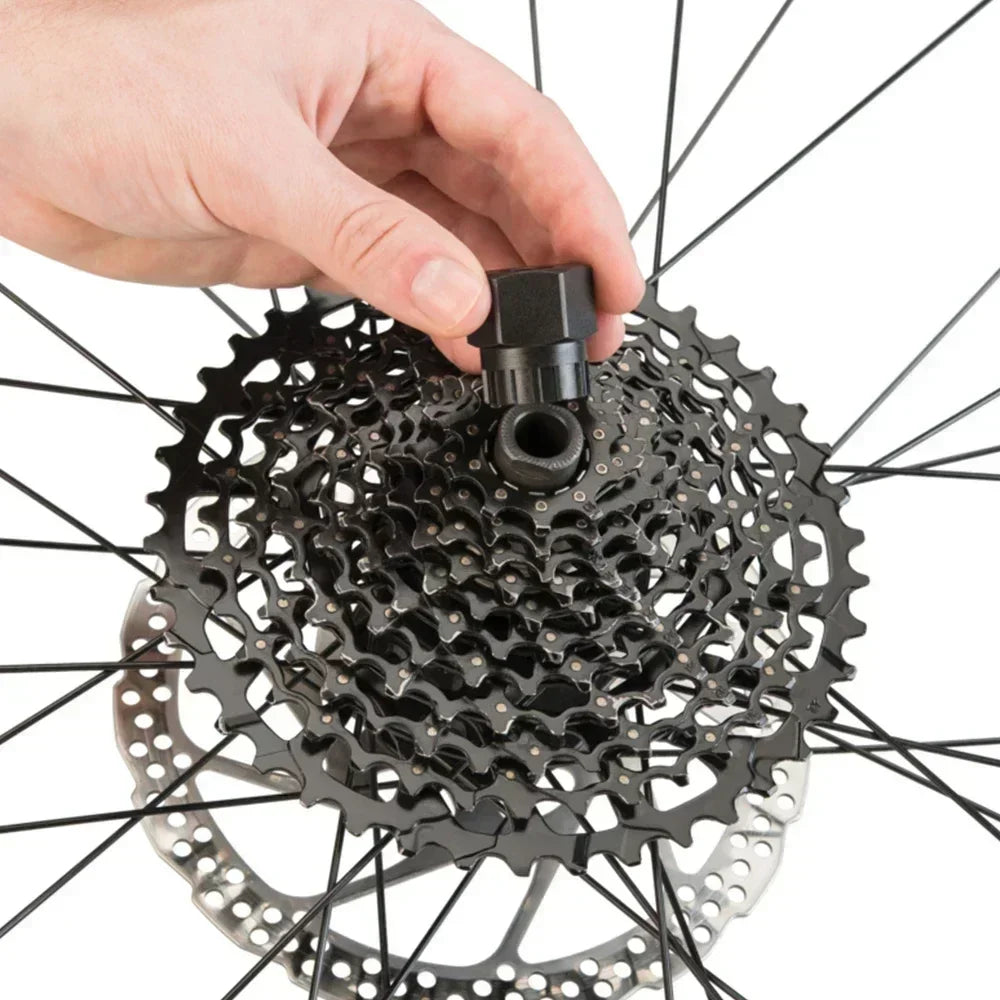

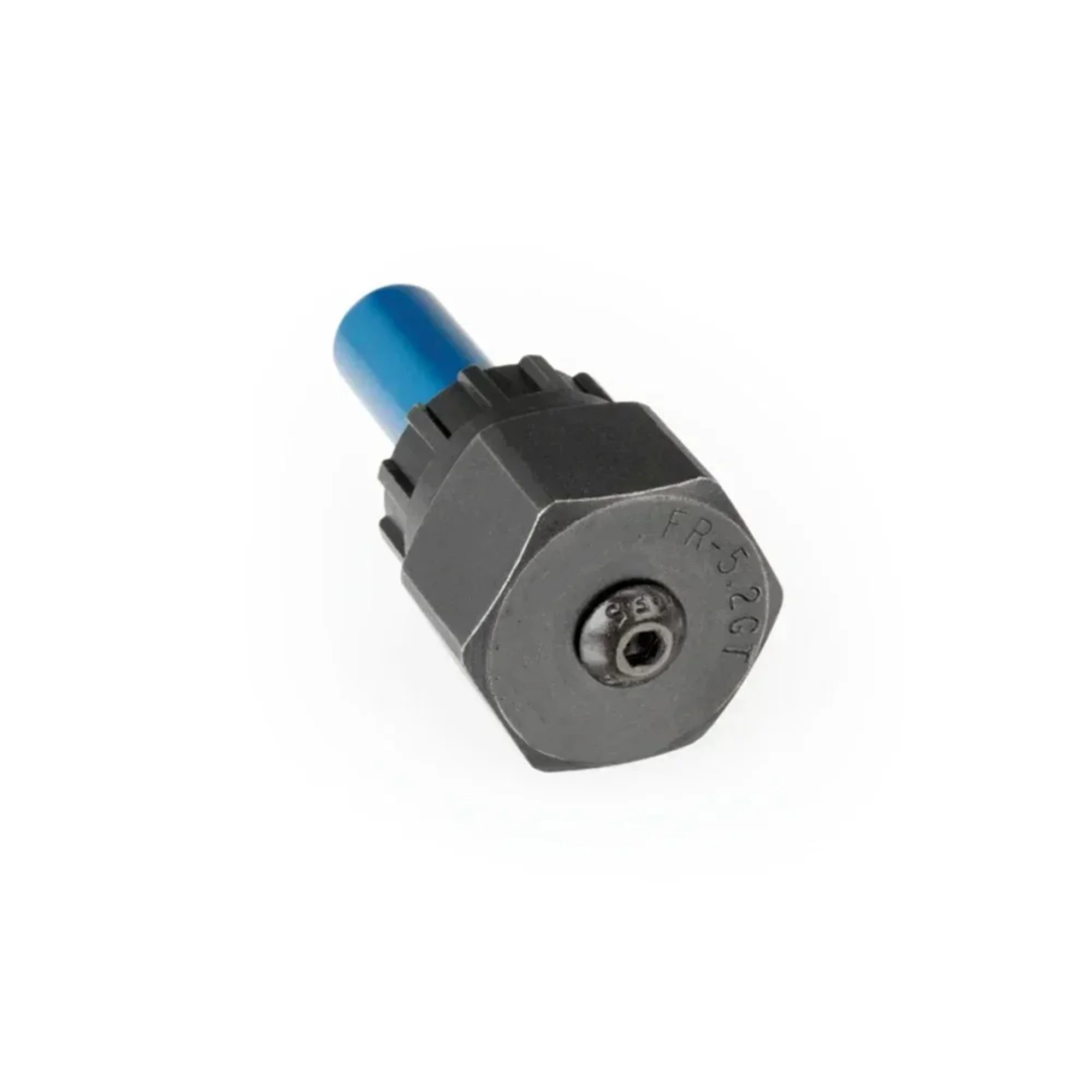

The dependable design of our FR-5.2 lockring tool with an added 12 mm guide pin to stabilize the tool when used with thru axle hubs. The FR-5.2GT is designed to fit the most common tool fitting found on 7-to-12 speed cassette lockrings, including models made by Shim ano, SR AM, and others. Also fits disc brake lockrings and lockring adapters with 12 internal splines. Thin wall construction allows use without removal of cones and locknuts. The 1" hexagonal base can be used in conjunction with a socket, wrench, or bench vise. Heat-treated alloy tool steel construction for a lifetime of use.

FR-5.2GT FEATURES

Fits 12-spline tool fittings with an approximate outer diameter of 23.4 mm including:

• Cassette lockrings from Shim ano, SR AM(including 1x), Sun Race, Sun Tour, Chris K in g and others

• Disc brake lockrings and lockring adapters with 12 internal splines from Shi mano and other brands

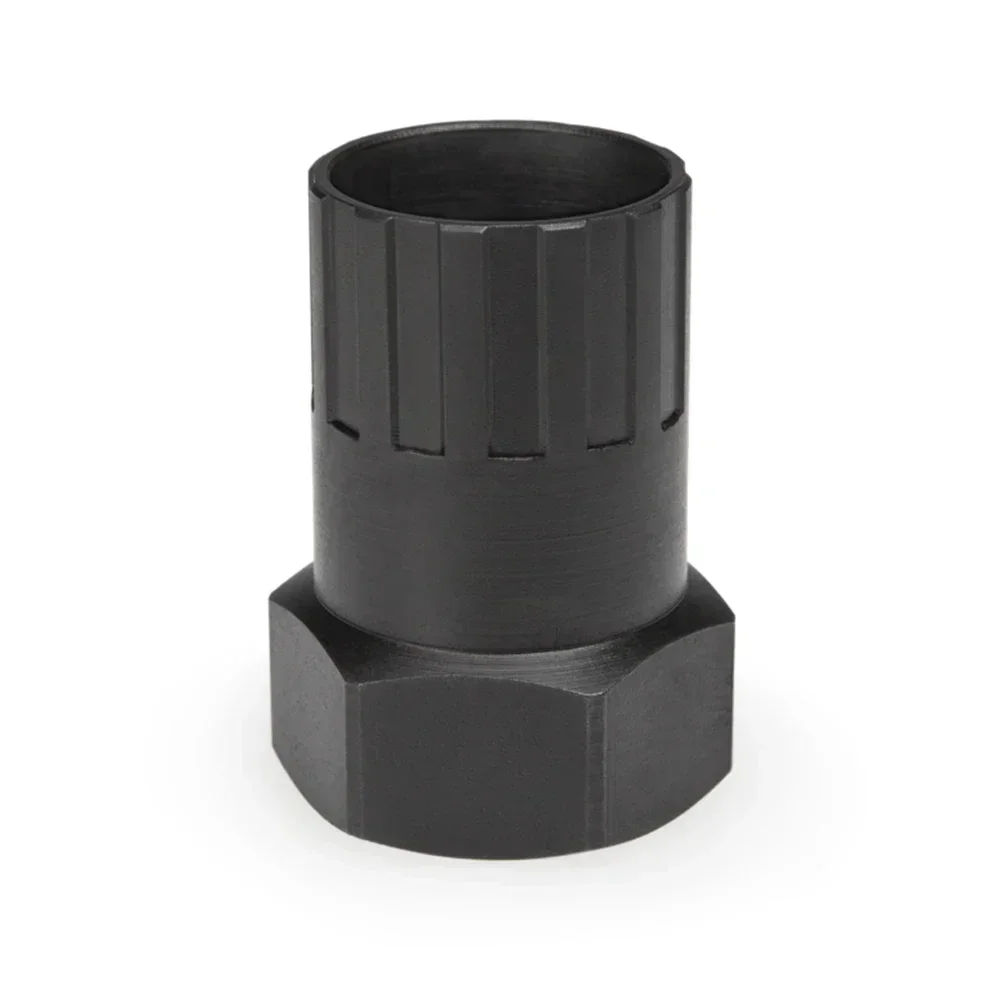

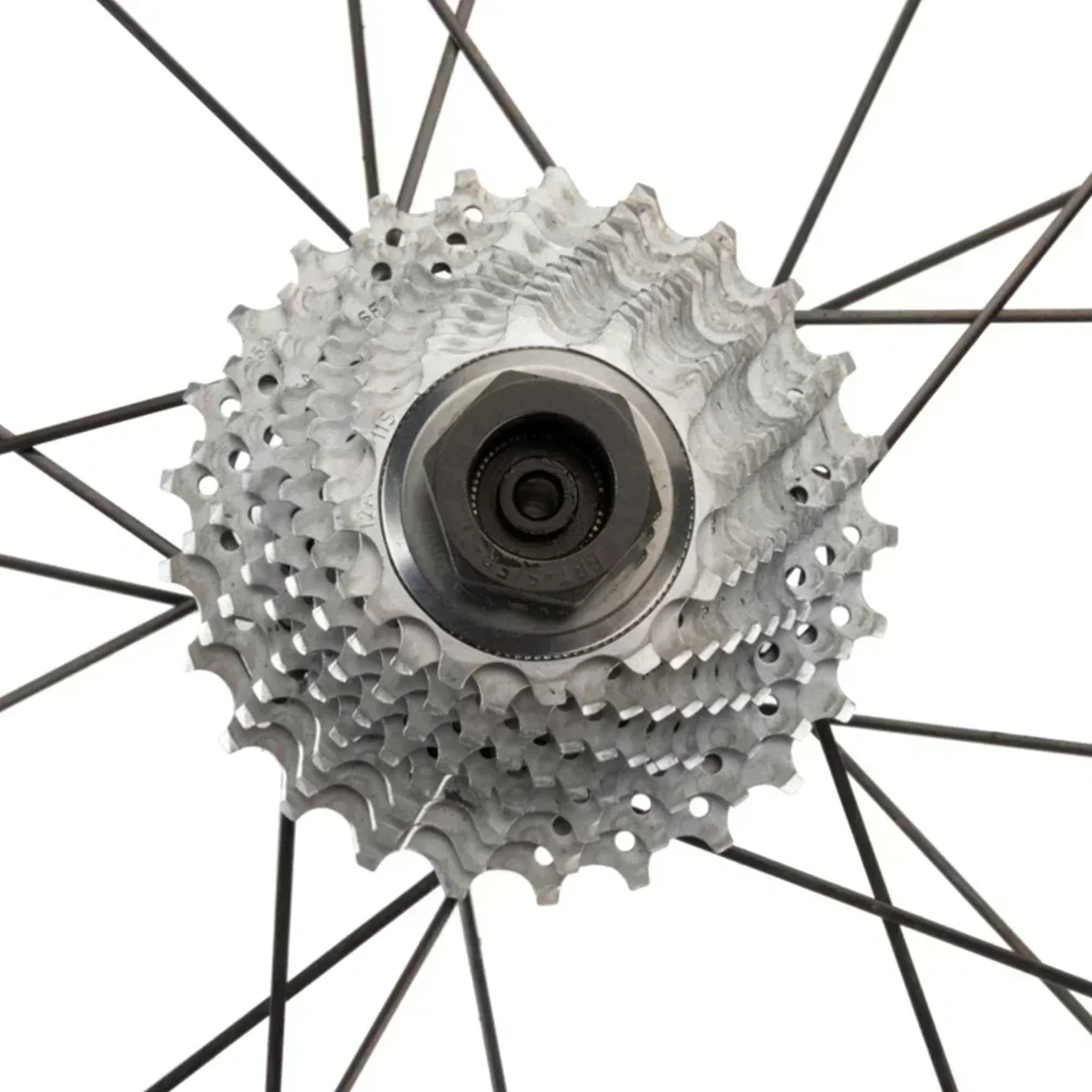

When removing and installing bicycle components, having the right tools is essential. The Park Tool BBT-5/FR-11 is designed to fit the tool fittings found on Cam pagnolo cassette lockrings and cartridge bottom brackets. Constructed from heat-treated alloy tool steel, the BBT-5/FR-11 features a 1" tool fitting for use with an adjustable wrench, socket, or bench vise.

BBT-5/FR-11 FEATURES

• Fits 12 spline/approx. 22.8 mm OD tool fittings

• Fits all Cam pagnolo cassette lockrings

• Also fits Cam pagnolo cartridge bottom brackets including Ch orus and Cen taur

• Base size for socket or wrench is 1" (25.4 mm)

NOTE: The BBT-5/FR-11 is not interchangeable with the FR-1.3, FR-5.2, or FR-7. Each tool fitting has its own unique tool profile.

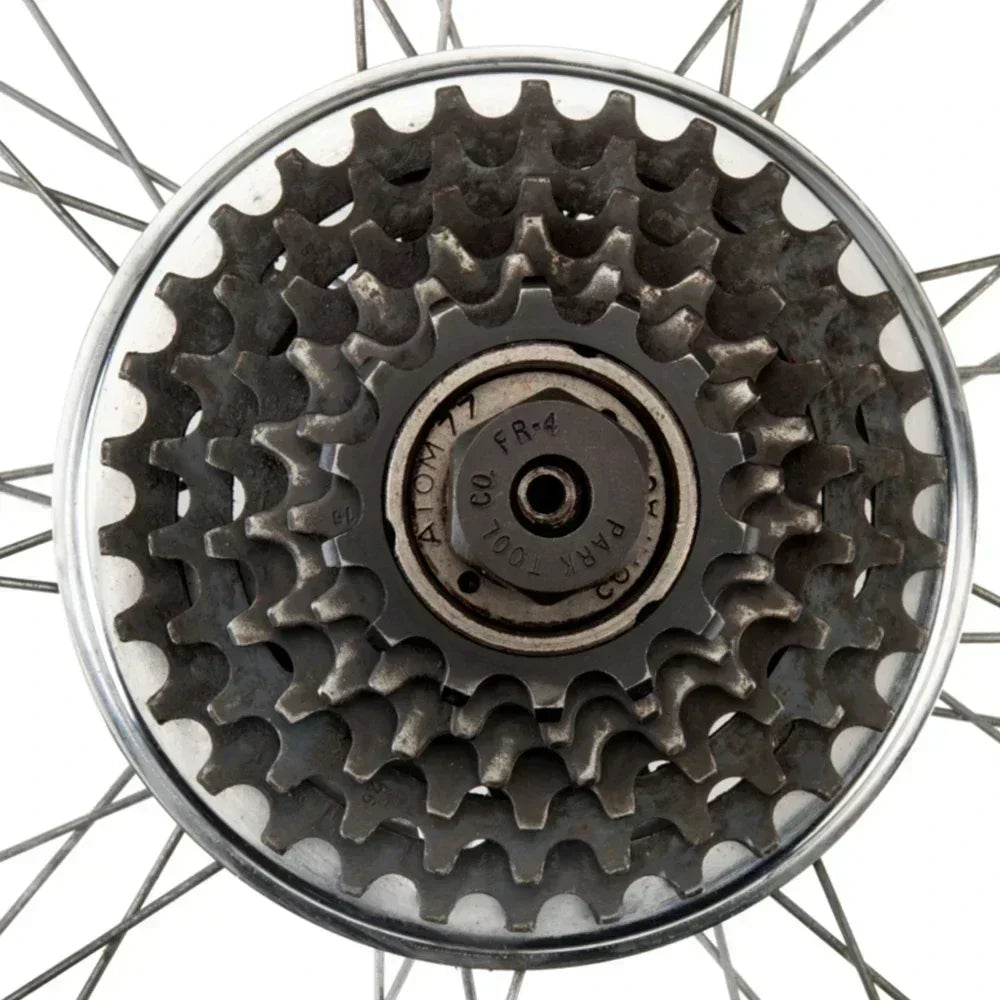

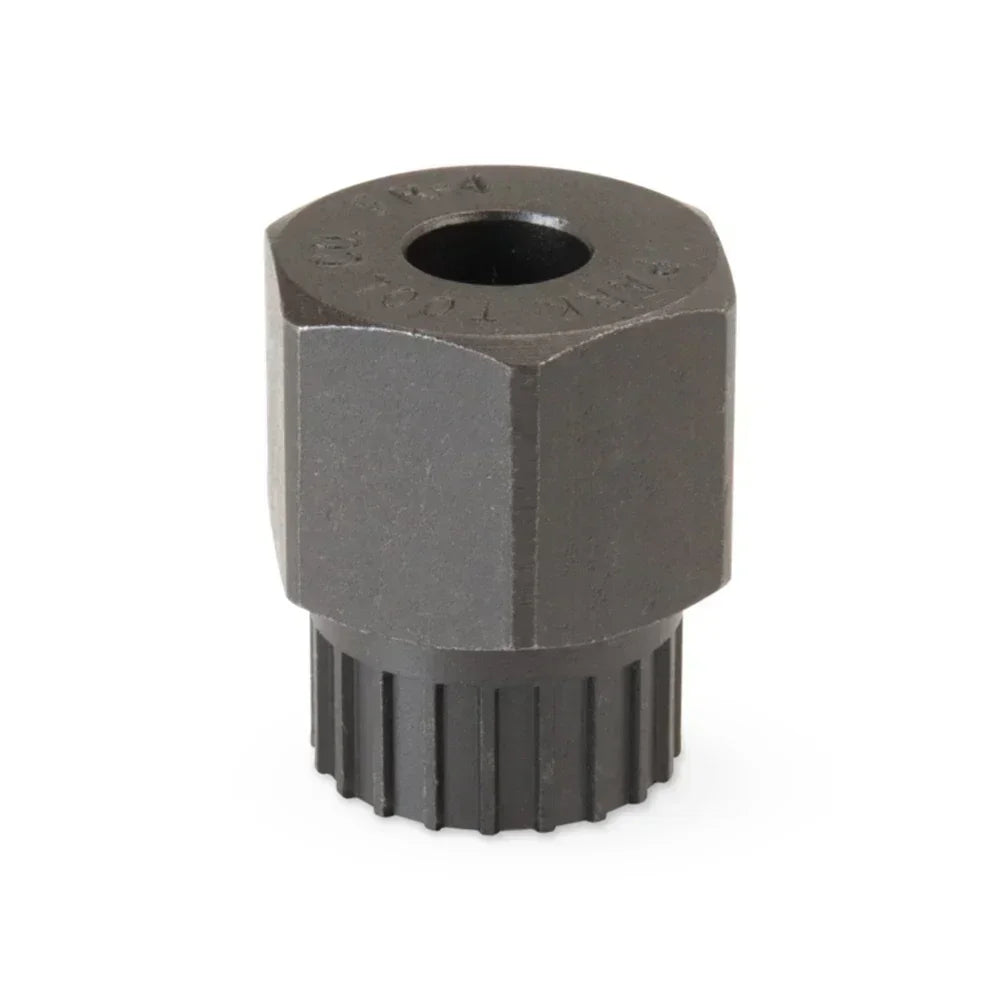

The FR-4 is designed to fit the 20-spline tool fittings found on older Sun Tour freewheels. Constructed from heat treated alloy tool steel, the FR-4 features a 1" tool fitting for use with an adjustable wrench, socket, or bench vise.

FR-4 FEATURES

• Fits 20-spline tool fittings with an approximate outer diameter of 21.6 mm

• Fits At om, Re gina, splined Ze us, and some Sch winn-approved freewheels

The FR-7 is designed to fit the 12-notch tool fittings found on Fa lcon freewheels. Constructed from heat-treated alloy tool steel, the FR-7 features a 1" tool fitting for use with an adjustable wrench, socket, or bench vise.

FR-7 FEATURES

• Fits 12-spline/23 mm OD tool fittings

• Center bore for axle clearance is 10 mm

NOTE: The shape of the FR-7 looks similar to the FR-1.3 (for Shim ano, Sun Ra ce, Sa chs and similar freewheels). The FR-7, however, is made with a slightly larger outside diameter (23mm) to fit the Facon Freewheel. To make it easy to distinguish between the two removers, the FR-7 has a silver-colored plating. The slightly smaller diameter FR-1.3 is black.

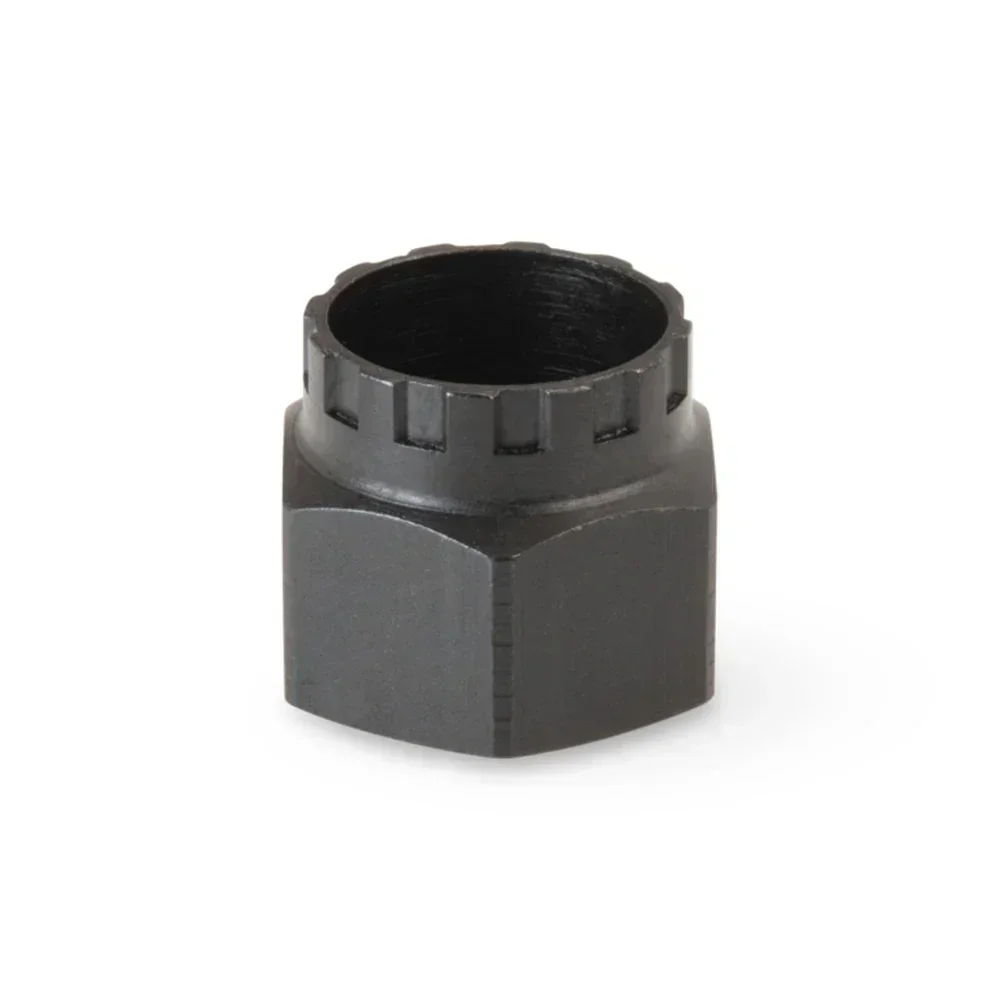

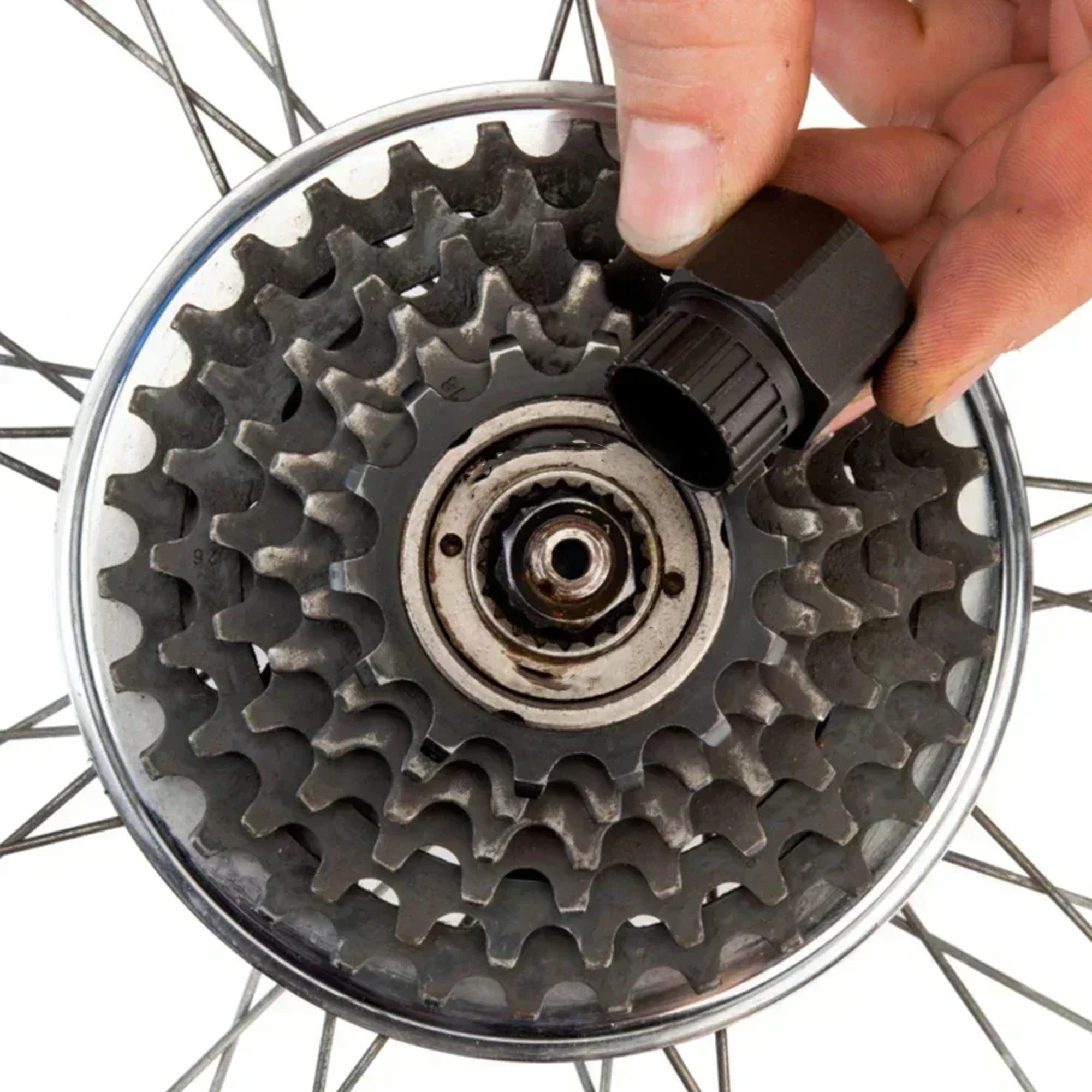

The FR-1.3 is designed to fit the most common tool fitting found on 5-to-10 speed bicycle freewheel systems, including many models made by Shi mano, Sachs Ar is, Sun Race, Dimen sion, and DNP Ep och. Features an enlarged thru-hole to accommodate 14mm solid axles. The 1" hexagonal base can be used in conjunction with a 1" socket or adjustable wrench. Heat-treated alloy tool steel construction for a lifetime of use.

FR-1.3 FEATURES

• Fits 12-spline tool fittings with an approximate outer diameter of 22.6 mm

• Center bore for ax le clearance is 15 mm

NOTE: For Fal con freewheels, use the FR-7.
