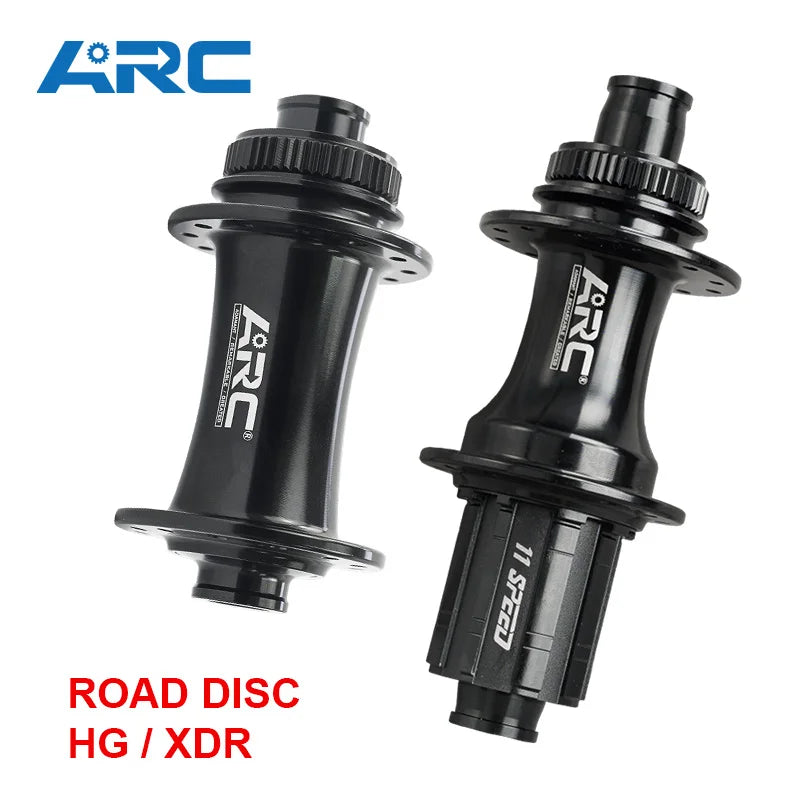

ARC Road Bike Hub Center Lock Disc Brake 6 Sealed Bearing Hub 4 Pawls 48 Clicks For HG XDR 8 9 10 11 12 Speed

Disc brake hub specifications

ARC road bike hub center overview for a center lock disc brake hub with a 24-hole road setup.

• Axle: Thru
• Braking System: Disc Brake
• Brand Name: ARC
• Category: Bearing Hub
• Choice: yes
• Freehub: HG
• High-concerned chemical: None
• Hub Hole Number: 24 Holes
• Material: Aluminum alloy
• Number of Holes: 24 Holes
• Origin: Mainland China
• Size: 142mm
• Spoke Hole: 24
• Type: Road Bike Hubs

ARC Road Bike Hub Center Lock Disc Brake 6 Sealed Bearing Hub Bike Bicycle Cube 4 Pawls 48 Clicks For HG XDR 8 9 10 11 12 Speed

Sealed bearings, 4 pawls and 48 clicks

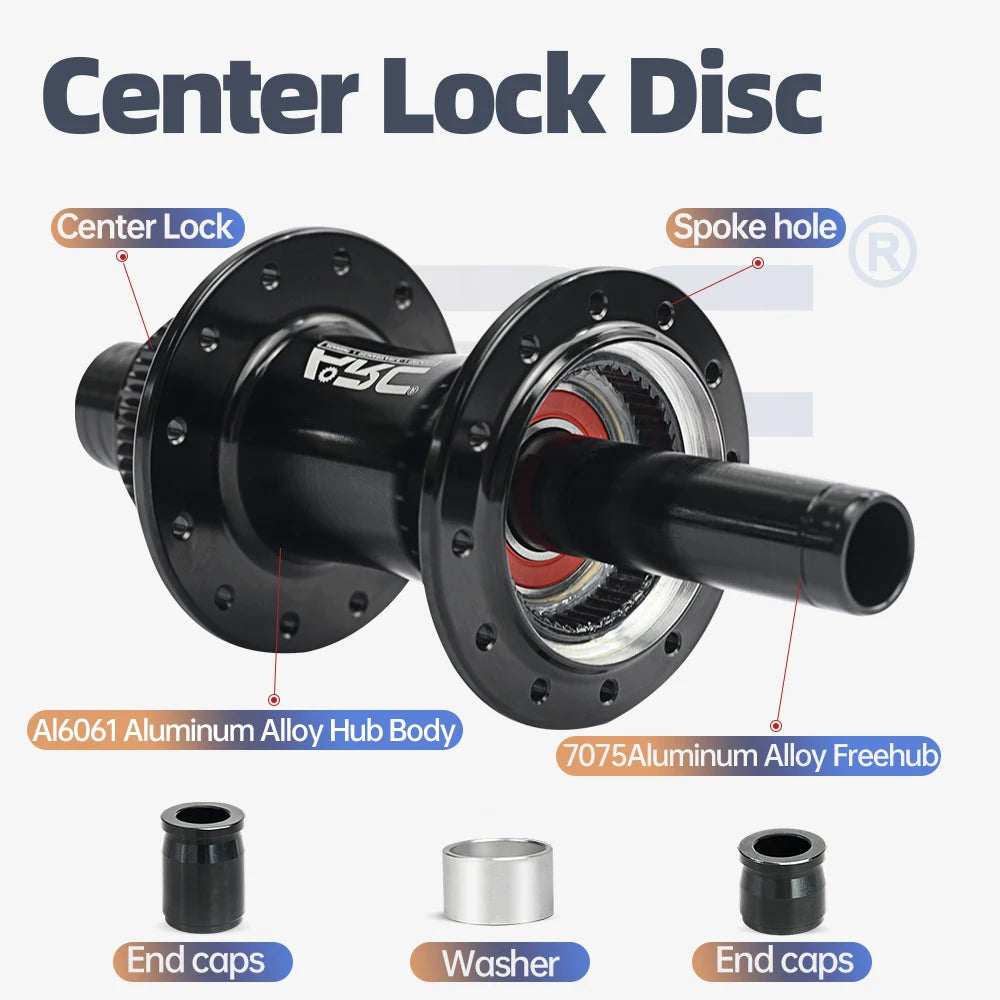

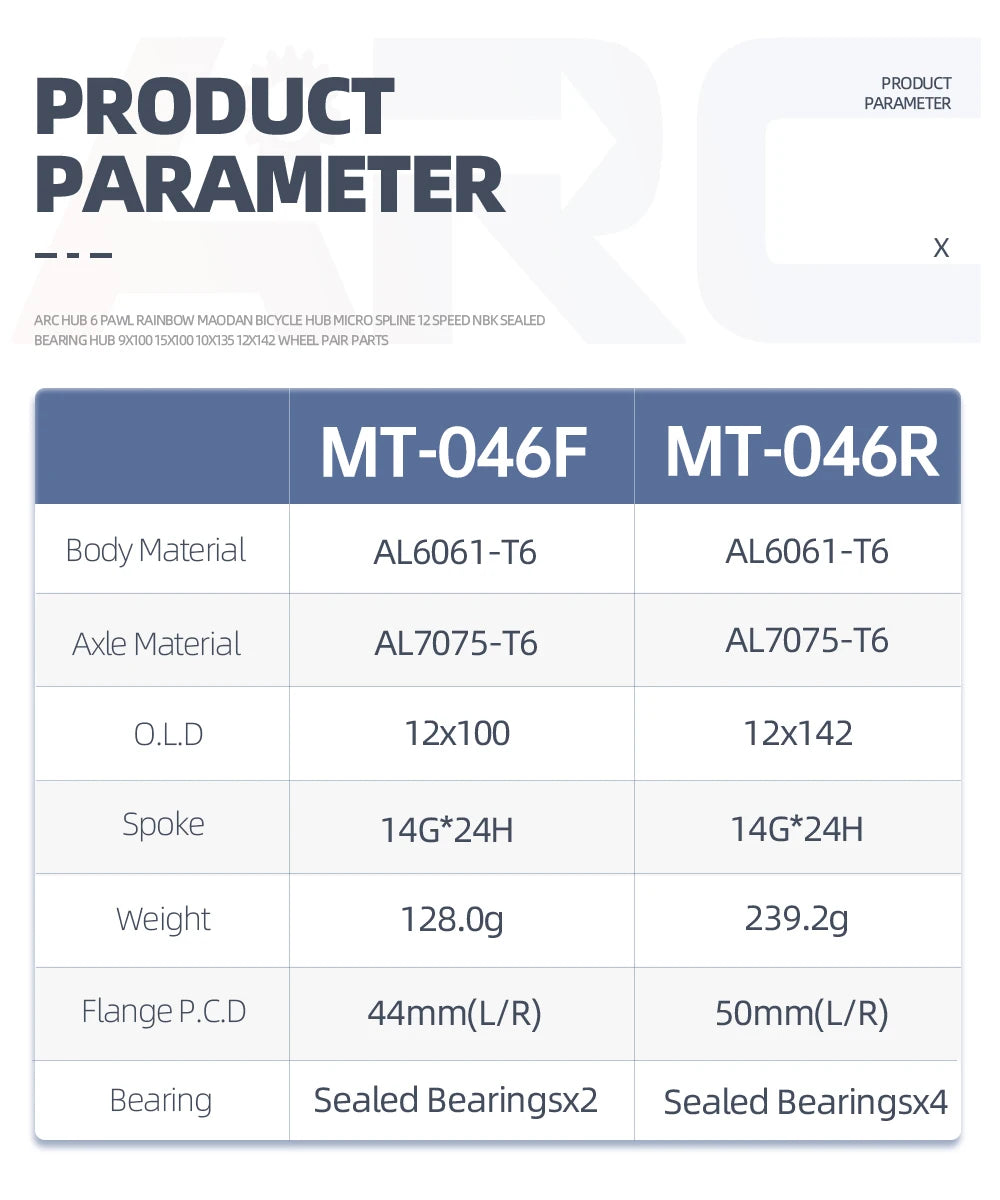

Shell material: Al6061-T6 case; AL7075-6 axis

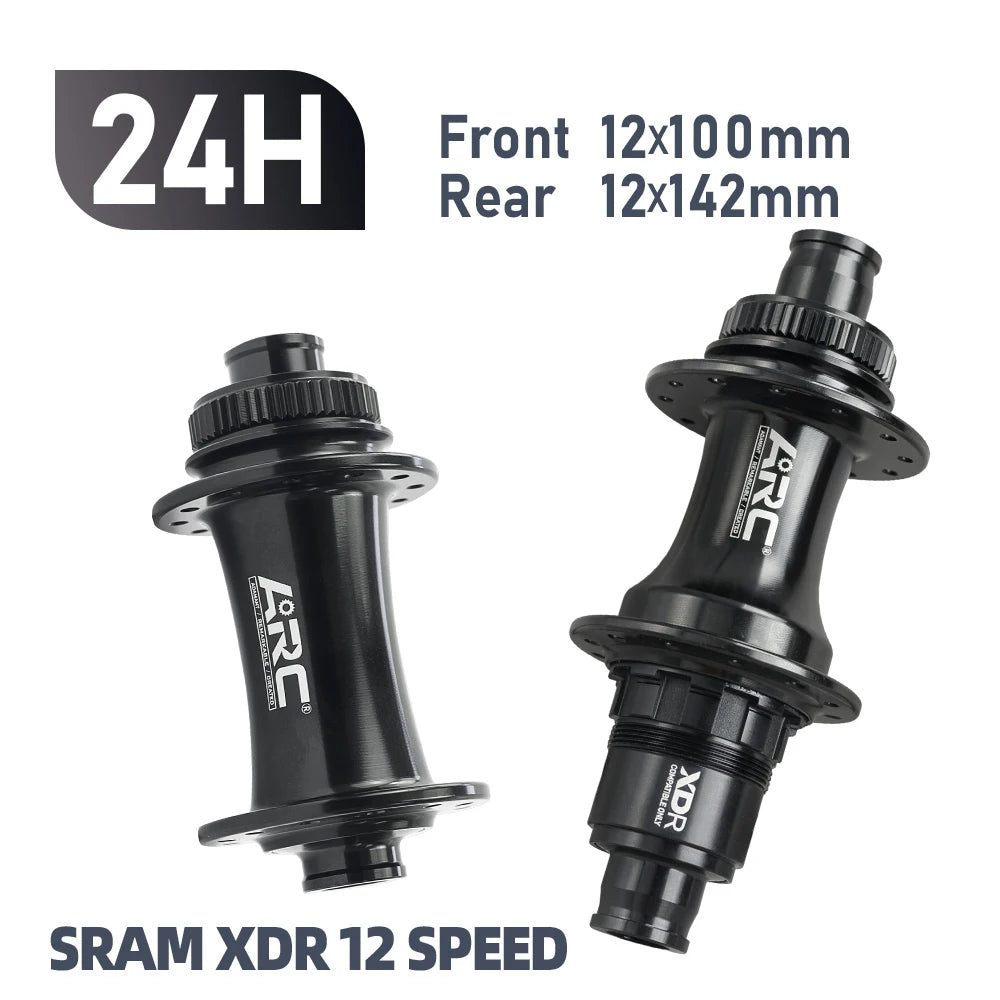

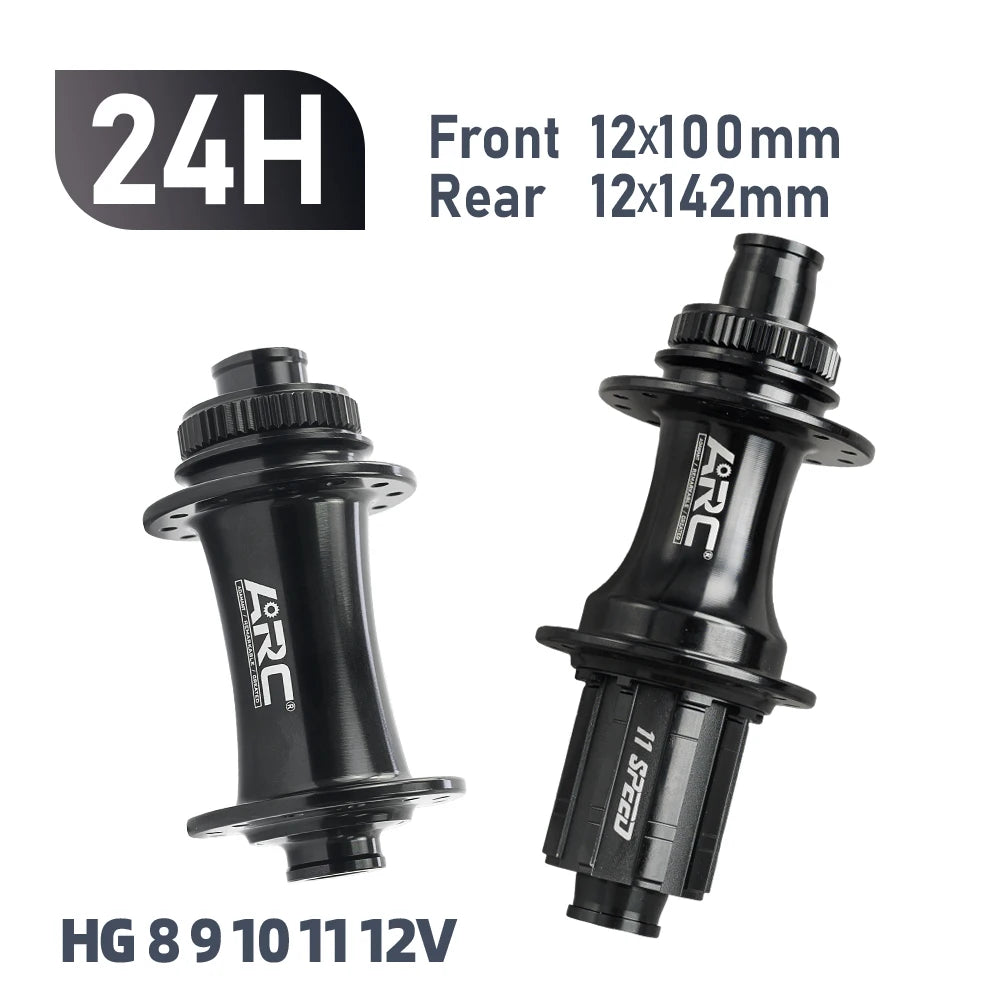

Freehub body: Hyper Glide 8 9 10 11 Speed / Sram XDR 12 Speed

Spoke: 14G*24H

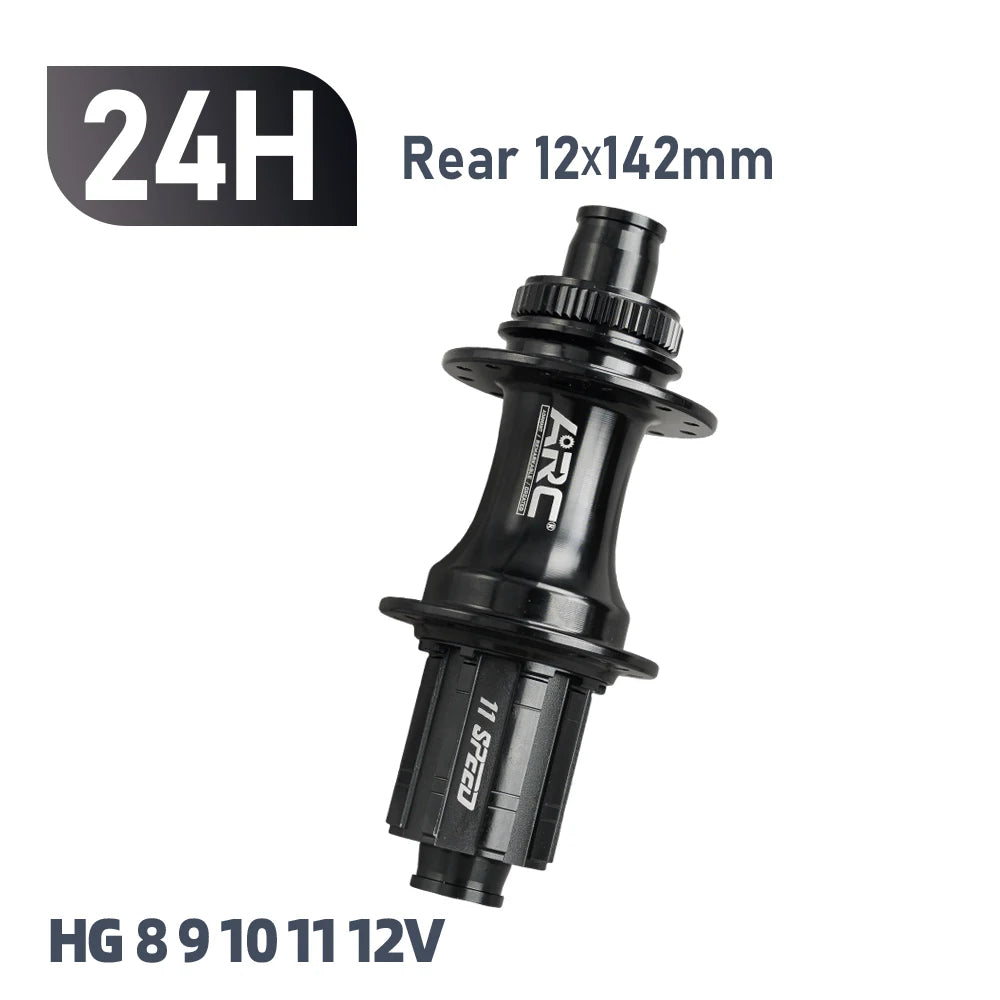

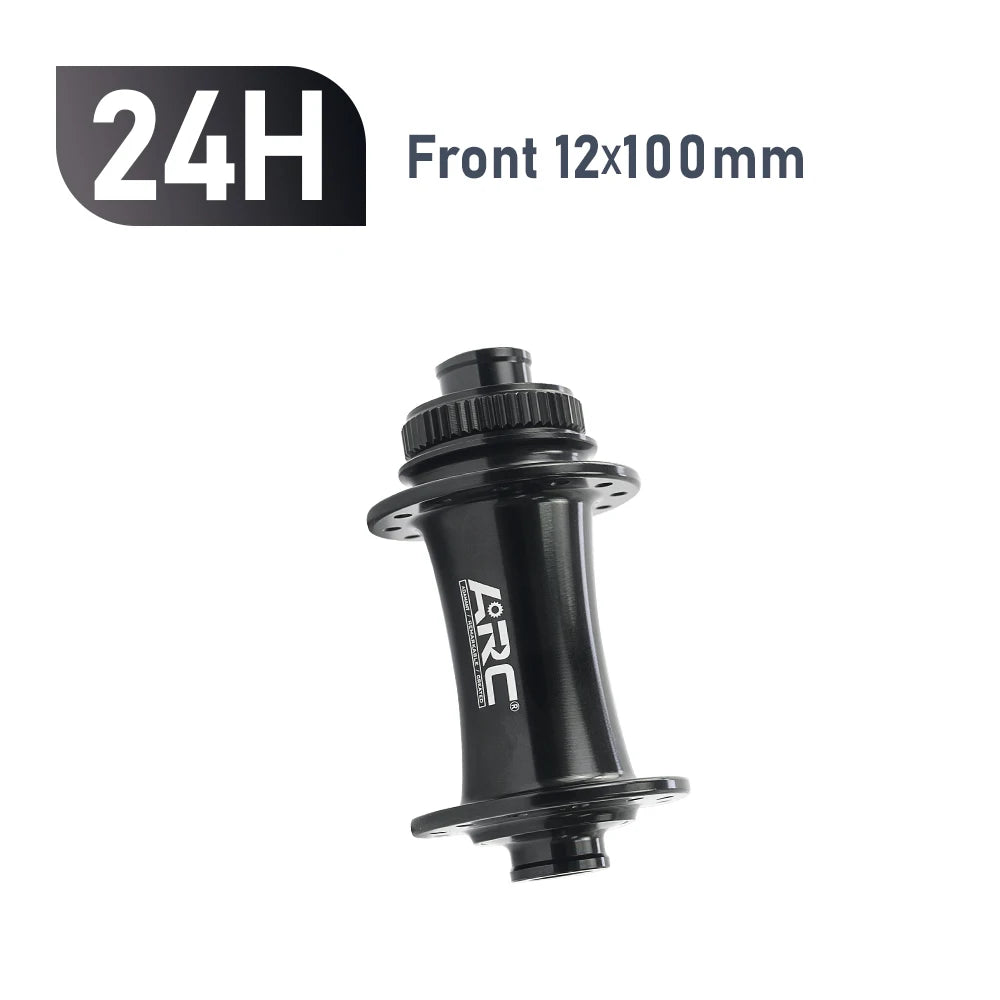

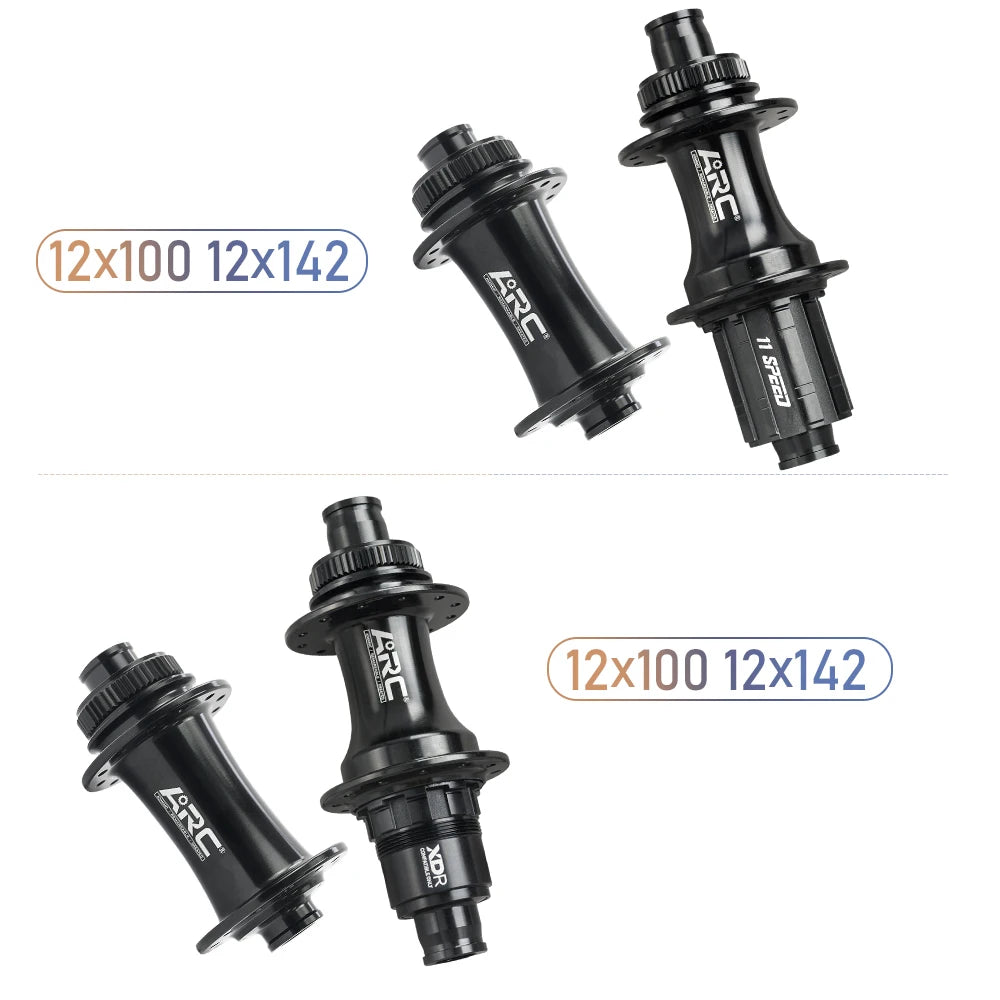

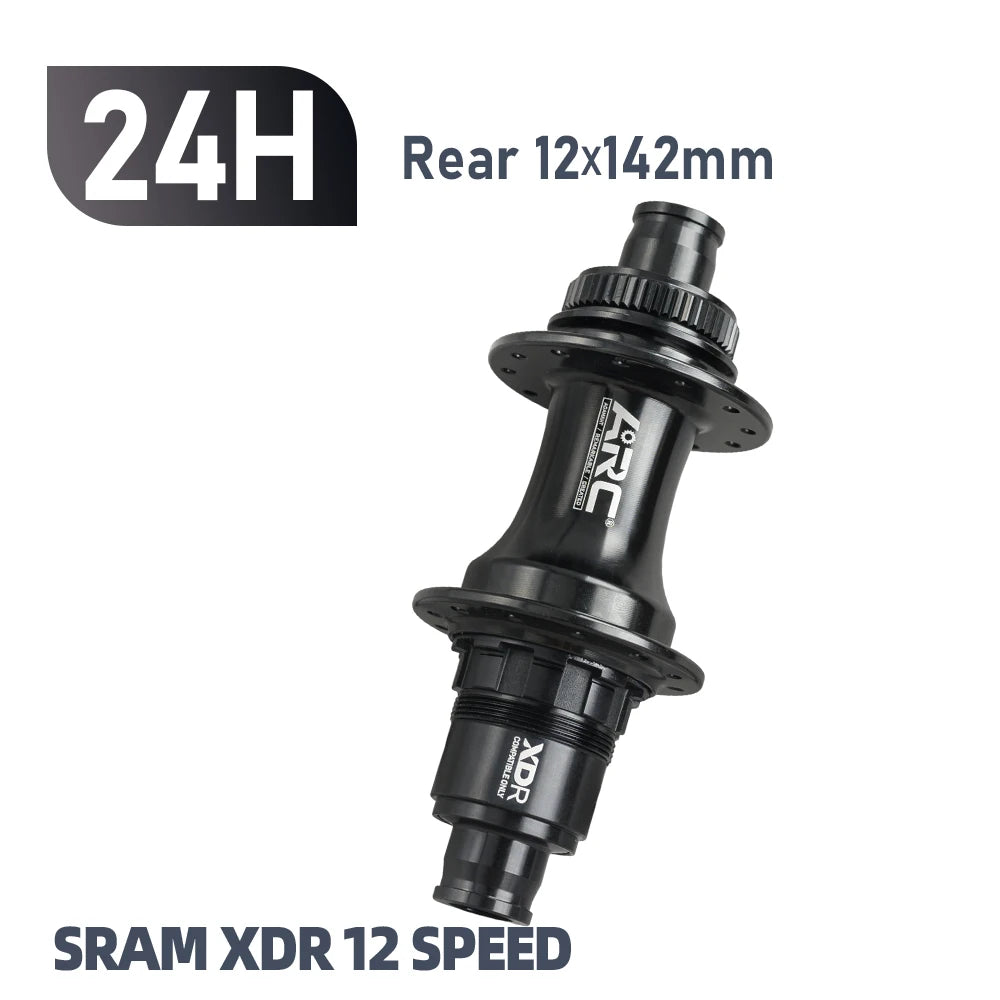

O.L.D: Front 12mm*100mm / Rear 12mm*142mm

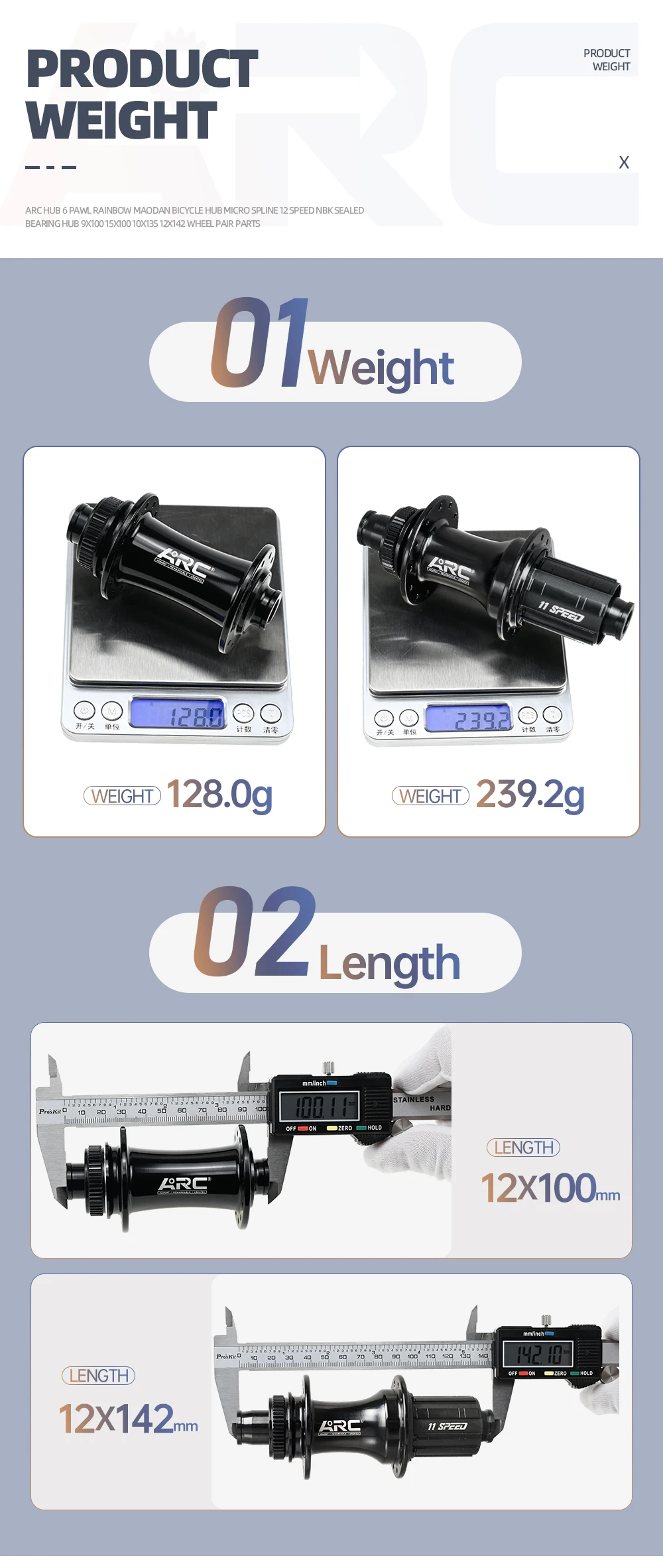

Weight: Front 128g / Rear 232.9g (Total: 355+(-)5g)

Bearing: Front 2 / Rear 4

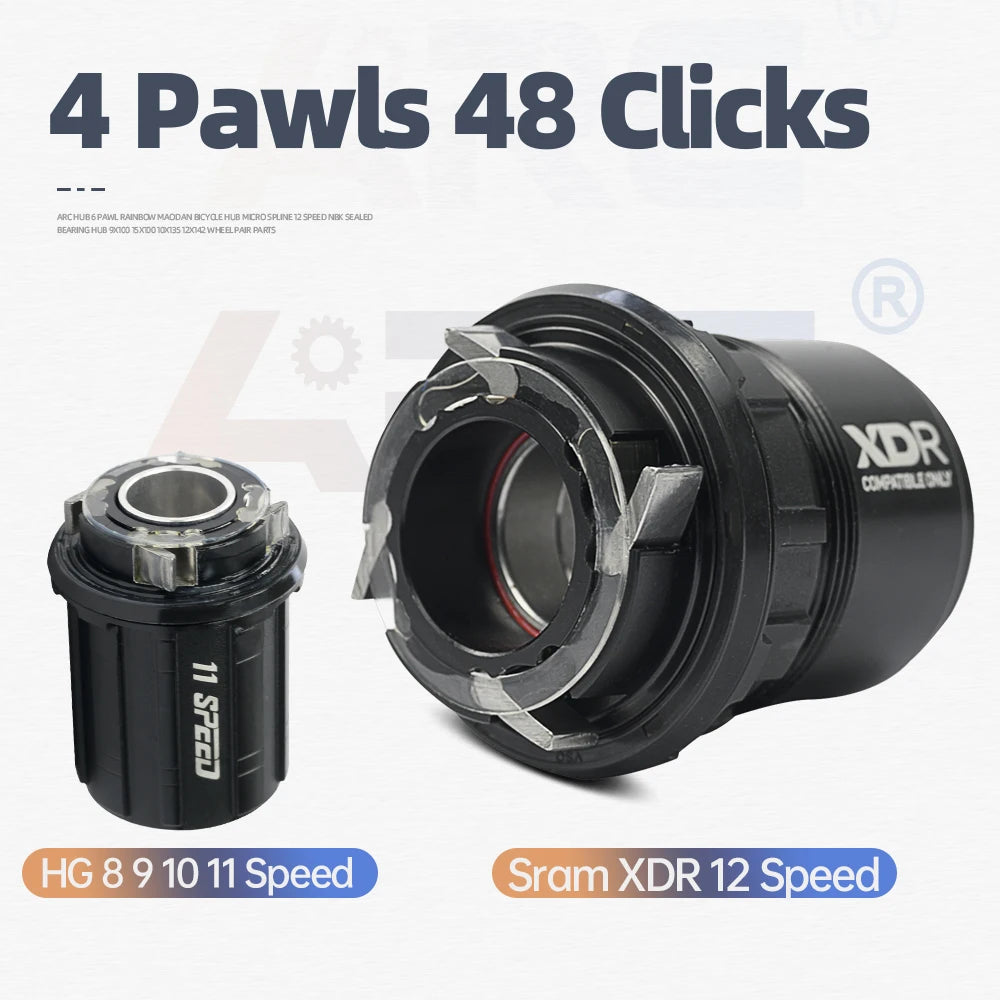

Pawls: 4 Pawls Single Teeth 48 Clicks

Warranty: 12 Months

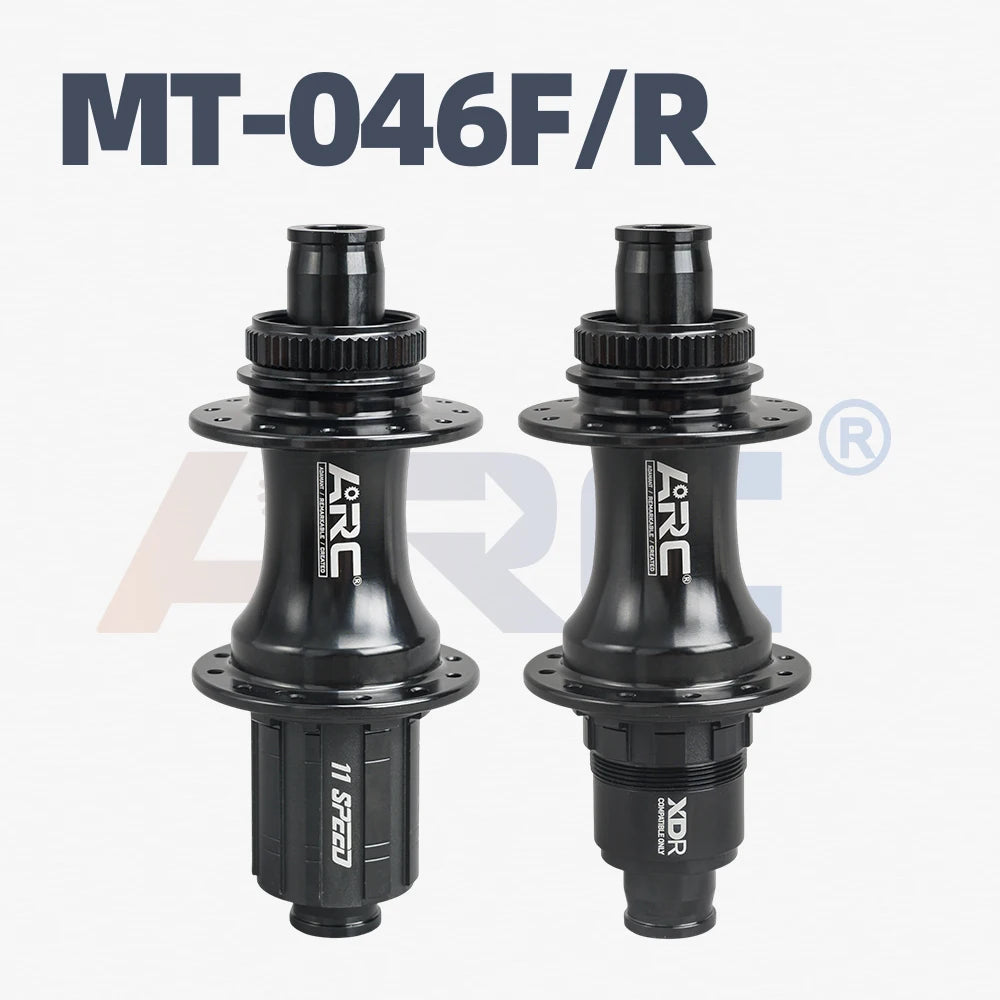

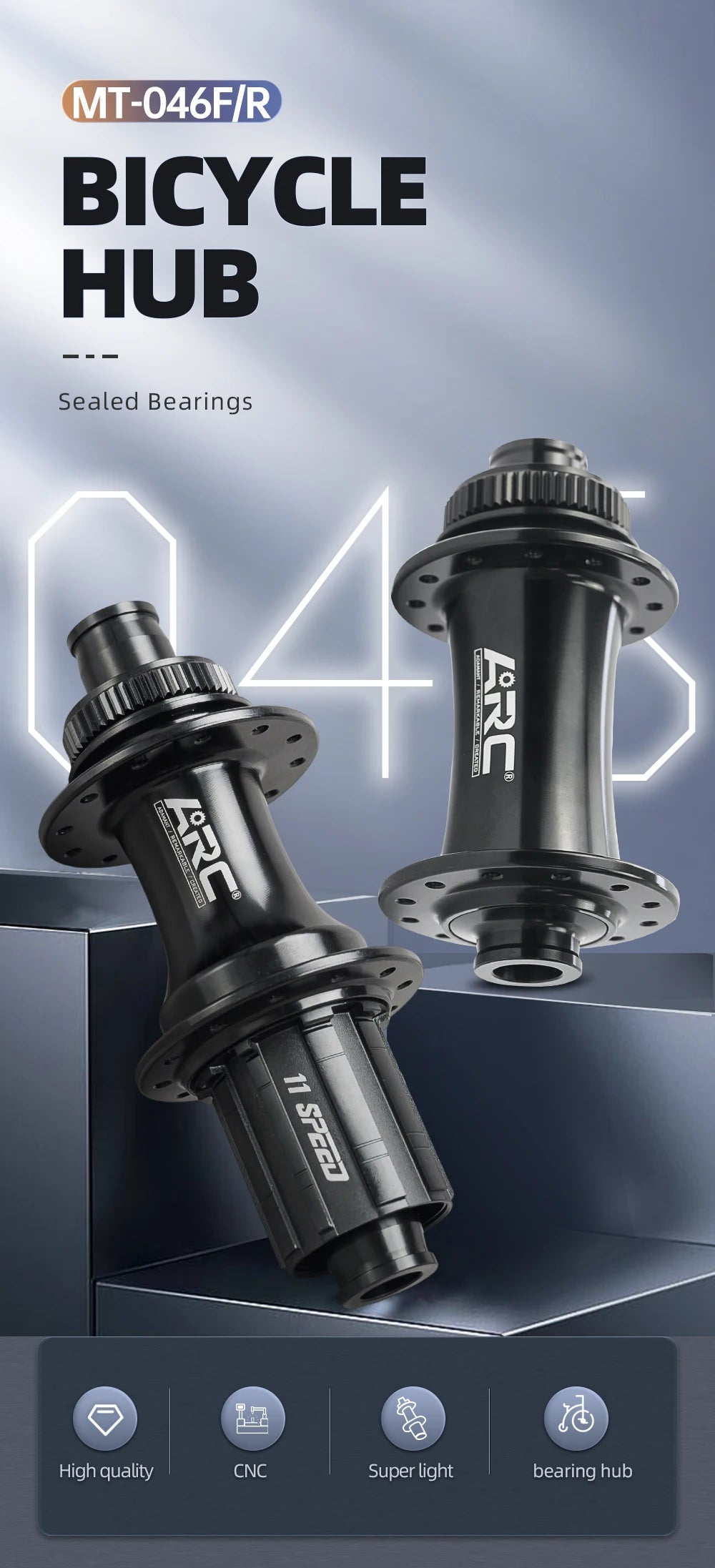

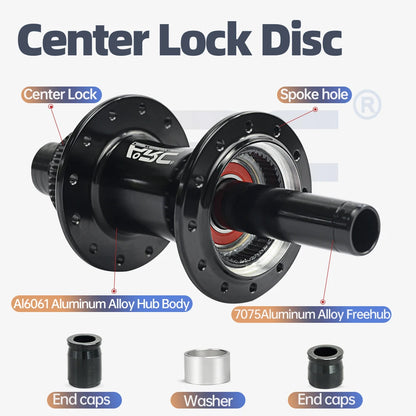

The MT046 is made of anodized aluminum alloy and is compatible with Hyper Glide 8-11 speed and Sram XDR 12 speed. It uses 4 pawls single teeth with 48 clicks and a disc brake center lock design.

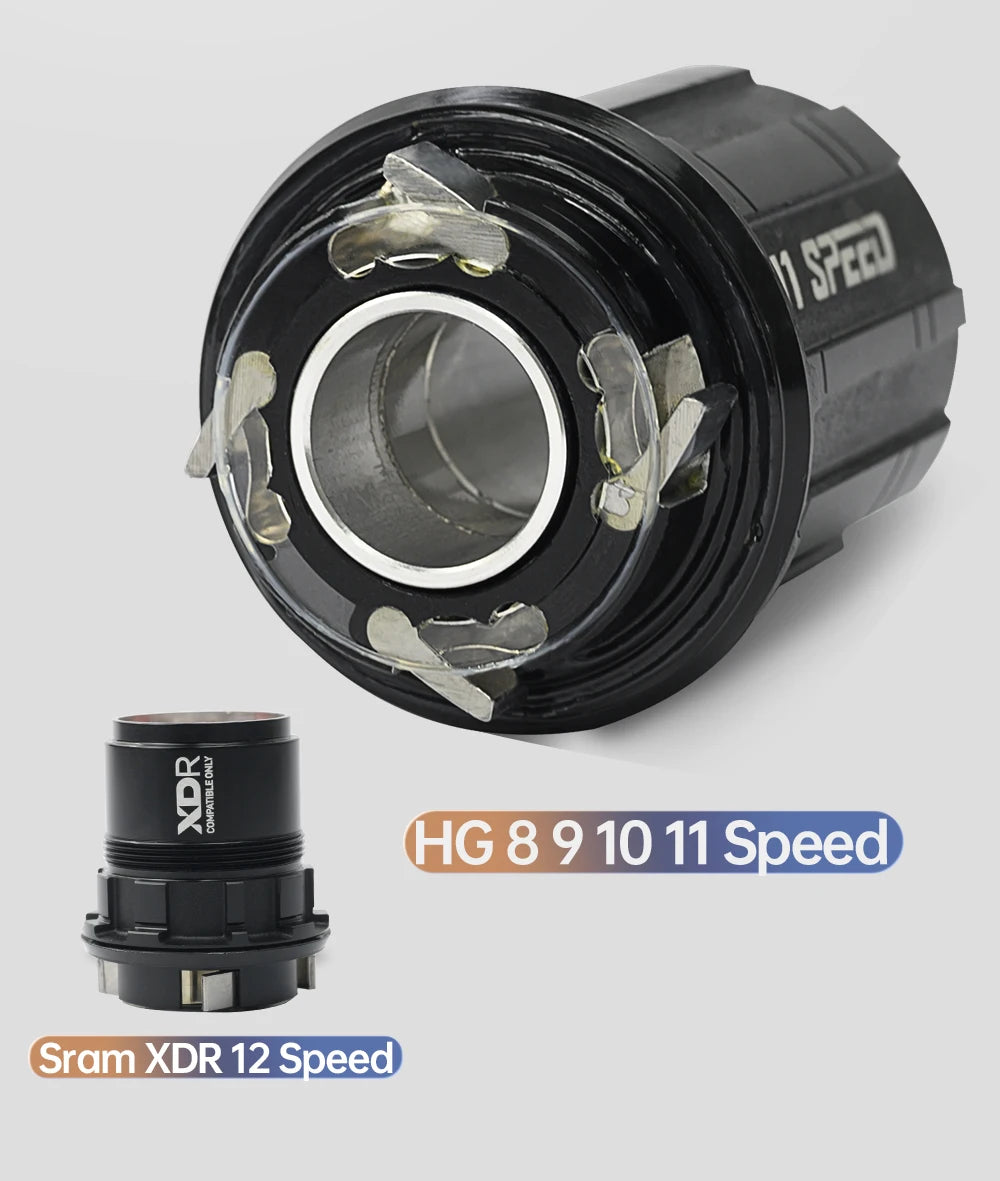

HG XDR freehub compatibility

The freehub body supports Hyper Glide 8-11 speed and Sram XDR 12 speed.
